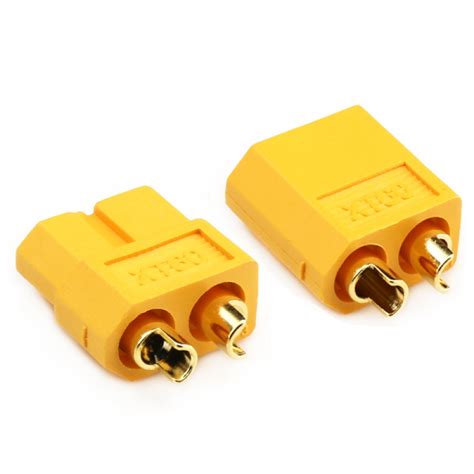

XT60 Connector - High Current 60A Gold-Plated Connector Pair
XT60 Connector - 60A Gold-Plated High Current Plug Pair
The XT60 connector is a high-current power connector widely used in RC models, drones, and battery packs. This pair includes one male and one female connector with gold-plated spring contacts, ensuring low resistance and a secure connection. Rated for 60A continuous current, it’s a reliable choice for high-drain applications.
Key Specifications
| Specification | Value |
|---|---|
| Continuous Current Rating | 60A |
| Burst Current Rating | 120A (short bursts) |
| Contact Resistance | < 0.4 mΩ |
| Voltage Rating | Up to 500V DC |
| Material | Nylon housing, gold-plated brass contacts |
| Wire Gauge Compatibility | 12-10 AWG |
What You Can Build With This
- Custom LiPo battery packs for drones and RC cars
- High-current power distribution boards
- Portable power stations and battery monitors
- Quick-disconnect harness for solar chargers
Compatibility
This connector is primarily used with LiPo, Li-ion, and LiFePO4 battery packs commonly found in RC vehicles and multirotors. It mates directly with any XT60 female or male plug, and is often paired with ESCs, power distribution boards, and high-discharge battery chargers. For microcontroller projects, it can connect high-current loads or batteries where barrel jacks are insufficient.
Wiring Notes
Solder wires to the gold-plated cups: positive to the rounded side and negative to the flat side (red wire to the male connector's positive terminal, black to negative). Use heat shrink tubing over each solder joint to prevent shorts. The connectors are gender-specific, so plan your battery and device sides accordingly.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with standard LiPo batteries?
Yes, the XT60 is the standard connector for most 3S-6S LiPo packs used in drones and RC vehicles. It mates directly with the battery’s XT60 plug.
Can I use this with 10 AWG wire?
Yes, the solder cups accept up to 10 AWG wire. Ensure a clean solder joint and use appropriate heat shrink for insulation.
What is the burst current tolerance?
It can handle short bursts up to 120A, making it suitable for high-torque motors or sudden power draws during acceleration.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
What you can build with this
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
