ESC BLDC Motor Throttle Kit with Arduino Uno + Motor — a beginner-level kit.
Master PWM Motor Control: ESC BLDC Motor Throttle Kit with Arduino Uno
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Turn a simple potentiometer knob into a precise throttle for a brushless motor. This kit lets you build a working motor speed controller that mirrors the throttle on a drone or RC car. You’ll write Arduino code to generate PWM signals, arm the 30A ESC, and watch the 2204 BLDC motor respond instantly to your hand’s movements.
What You'll Build
You’ll assemble a complete motor control system on a breadboard. The Arduino Uno reads the 10kΩ potentiometer’s position, converts it to a PWM signal, and sends it to the ESC. After arming the ESC, the brushless motor spins from zero to full speed with smooth, variable control — exactly like an electronic throttle.
What You'll Learn
- Write Arduino code to generate clean PWM signals for motor speed control
- Arm and calibrate an ESC safely using programmed throttle ranges
- Map analog potentiometer input to a 0–180° PWM output range
- Understand the basics of brushless motor commutation and ESC feedback
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | x1 |
| ESC 30A | x1 |
| Brushless Motor 2204 | x1 |
| 10kΩ Potentiometer | x1 |
| 3S LiPo 1300mAh | x1 |
| XT60 Connector | x1 |
| 400-pt Breadboard | x1 |
| M-M Wires | x20 |
Who This Kit Is For
This kit is perfect for CBSE students taking their first practical steps into motor control, ATL Tinkering Lab participants exploring brushless motor driving, and young robotics enthusiasts who want to understand how electric vehicles and drones regulate speed. It’s also a great mini-project for beginners at IIT, NIT, VIT, or BITS workshops.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to launch the AI build companion, which walks you through every connection and code block. If you still need help, message us on WhatsApp — we’ll reply within an hour.
Is soldering required?
No soldering at all. The entire circuit is built on the included breadboard using male-to-male jumper wires.
Is the LiPo battery safe for beginners?
Yes, the kit includes a 3S LiPo with an XT60 connector and clear safety instructions. We cover proper charging, handling, and never leaving the battery unattended during tests.
Can I reuse the components for other Arduino motor projects?
Absolutely. The Arduino Uno, ESC, motor, and breadboard are all standard components you can reuse for drone builds, robotics rovers, or any PWM-based motor control experiment.

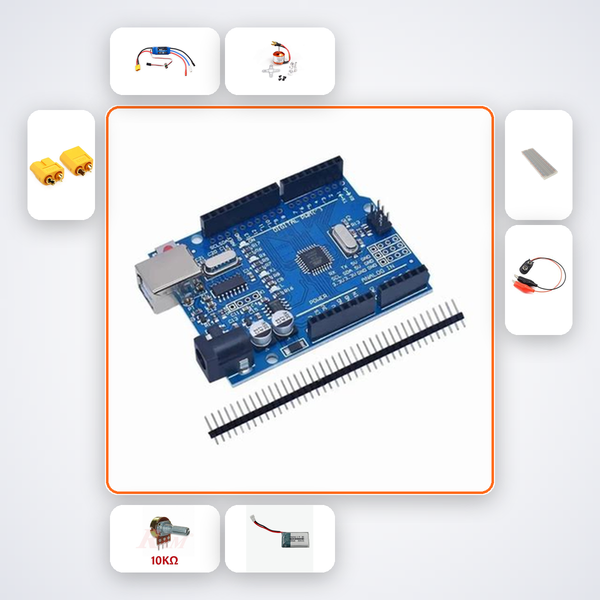

ESC connected to BLDC motor. Arduino PWM throttle. Potentiometer controls speed. ESC arming taught.
