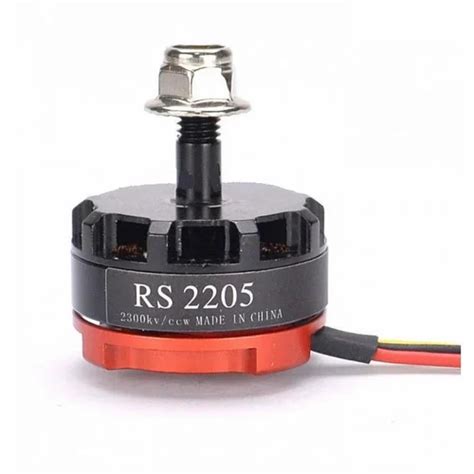

RS2205 2300KV Brushless High Speed Motor for Drone (CCW)
The RS2205 2300KV brushless motor is designed for 5-inch propeller FPV drones and multirotors. This CCW (counter-clockwise) threaded version pairs with a CW counterpart for balanced thrust. With a 2300KV rating, it delivers high RPM on 3S–4S LiPo batteries, making it suitable for racing and freestyle builds.
Key Specifications
| Specification | Value |
|---|---|
| Stator Size | 2205 (22mm diameter, 5mm height) |
| KV Rating | 2300 RPM/V |
| Weight | ~25g |
| Max Thrust | 900g (4S, 5045 prop) |
| Input Voltage | 2S–4S LiPo (7.4V–14.8V) |
| Propeller Shaft | M5 thread, CCW |
What You Can Build With This
- 5-inch FPV racing quadcopter
- Freestyle drone with GoPro mount
- Lightweight cinewhoop with ducted props
- High-speed RC airplane (tractor configuration)
Compatibility
Works with standard 20A–30A BLHeli_S or BLHeli_32 ESCs. Pairs with 4-in-1 ESC boards and flight controllers like BetaFPV F4 or Kakute F7. Mounting pattern is 16x16mm or 19x19mm (M3 screws). Use with 5x4.5 bullnose or 5x4.3 tri‑blade props.
Wiring Notes
Solder the three motor wires to the ESC pads in any order; swap any two wires to reverse spin direction. Ensure joints are clean and insulated. Use 14AWG silicone wire for high‑current 4S setups. No pull‑ups needed.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We’ve spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3–5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
No direct connection — you need a brushless ESC that accepts a PWM signal, which any Arduino can generate on its digital pins. Power the ESC separately.
What propellers fit this motor?
Standard 5‑inch props with a 5mm shaft hole, such as 5045 bullnose, 5043 tri‑blade, or 5×4.5×3. Ensure the propeller nut matches the CCW thread.
Does it include mounting screws?
Yes, M3×6mm hex screws are included for mounting to a frame. Verify your frame’s motor mount pattern accepts 16×16mm or 19×19mm spacing.
