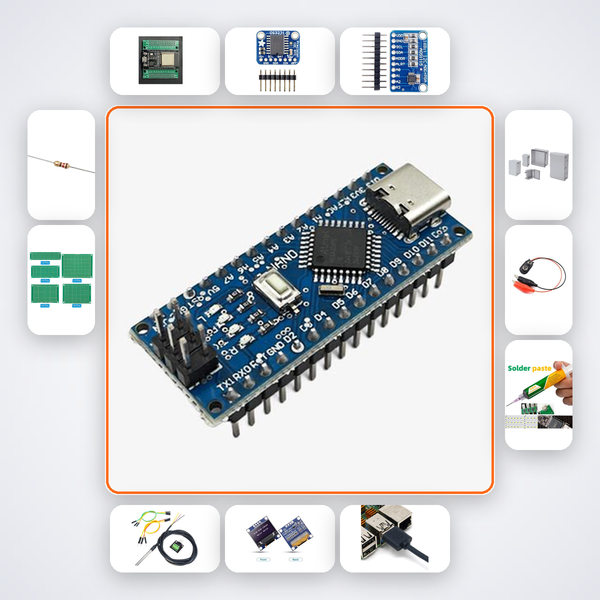

Build an RTC-Free High-Precision Clock with Arduino Nano and Crystal Oscillator

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Break free from dependence on off-the-shelf RTC modules by building a clock that measures and corrects its own drift. You'll drive a 32.768 kHz watch crystal directly from an Arduino Nano's timer, then use a high-resolution ADC and a precision temperature probe to compensate for thermal fluctuations - the same principle behind atomic clock corrections, scaled to a maker-level project.

What You'll Build

You will assemble a standalone timekeeping module with the Arduino Nano at its core, a 32.768 kHz crystal, and an OLED display that shows real-time accuracy down to tenths of a second. The system continuously reads ambient temperature via the DS18B20 probe and measures the crystal's frequency deviation with the ADS1115 ADC, applying compensation algorithms to maintain less than 1 second of drift per day. The enclosure, prototyping boards, and included soldering iron let you create a durable, portable instrument ready for data logging or precise timestamping in larger research setups.

What You'll Learn

• Drive a 32.768 kHz crystal oscillator using Arduino's timer/counter peripheral
• Measure crystal frequency drift with the ADS1115 16-bit ADC for microvolt-level resolution
• Implement temperature compensation by correlating DS18B20 readings with drift curves
• Calibrate the system to sub-second accuracy per day, even without an internet-synced reference

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Ideal for B.Tech ECE/EEE students building final-year precision instrumentation projects, polytechnic learners exploring microcontroller-based measurement, and Smart India Hackathon teams implementing accurate data-loggers or sensor networks. It also suits advanced hobbyists who want to understand crystal oscillator physics and become self-sufficient in timebase design.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
