Arduino Nano Flex Sensor Glove: Physiotherapy Compliance Tracker Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

In physiotherapy, hand rehabilitation after injury or surgery demands consistent exercise, yet compliance is notoriously difficult to verify between clinic visits. This kit enables you to build a smart glove that uses four flex sensors to capture joint angles for each finger, logs the time-stamped data via an MPU6050 inertial unit and a real-time clock, and stores everything on a microSD card. Move beyond paper diaries-deliver an objective, wearable data logger that physiotherapists and researchers can rely on.

What You'll Build

You will assemble and program a calibrated glove that measures flexion for all four fingers, displays real-time angle readings on an OLED screen, and records every movement to a CSV file with sub-second timestamps. The built prototype sits comfortably on the hand, runs on a rechargeable LiPo battery, and provides immediate visual feedback during exercise sessions, while the logged data can be analysed later for range-of-motion progress and compliance trends.

What You'll Learn

• Calibrate multiple flex sensors using voltage dividers and map resistances to accurate bend angles
• Fuse MPU6050 accelerometer and gyroscope data to add wrist orientation context to finger logs
• Integrate a DS3231 real-time clock for precise timestamping and session management
• Write robust data-logging firmware that structures readings into CSV files on a microSD card

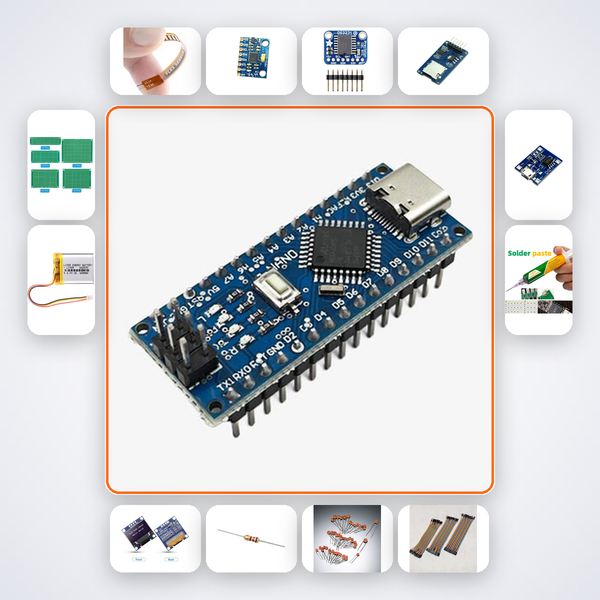

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

B.Tech students in ECE, EEE, or biomedical engineering will find this an ideal final-year capstone project or Smart India Hackathon entry. The advanced sensor fusion and data logging align with research prototypes at IITs, NITs, VIT, and BITS Pilani. Physiotherapy clinics and ATL Tinkering Labs experimenting with low-cost wearable health monitors can also immediately benefit from the pre-assembled sensor glove platform.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
