Arduino Nano Smart Bin with OLED Expressions Kit
Build a Touchless Bin with Personality Using Arduino Nano
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine a dustbin that greets you with a smile when you approach, and reacts with surprise if you make a sudden noise. This kit turns an ordinary bin into an interactive robot companion. You'll build a compact display module that senses proximity and sound, then shows animated facial expressions on two OLED screens. It's a playful, hands-on introduction to embedded systems that combines hardware, coding, and creativity.
What You'll Build
You'll assemble a small module using an Arduino Nano, ultrasonic and sound sensors, and twin 0.96-inch OLED displays. Mount it on any trash can (a cardboard enclosure template is included) and watch as it responds when someone waves a hand or speaks nearby. The left and right screens show coordinated eyes and mouth expressions - happy, surprised, sleepy, or curious - bringing a distinct personality to an everyday object.
What You'll Learn
- Interfacing HC-SR04 ultrasonic and analog sound sensors with Arduino
- Programming real-time reactions based on combined sensor data
- Displaying custom bitmap animations on I2C OLED screens
- Designing personality-driven interaction logic for embedded projects

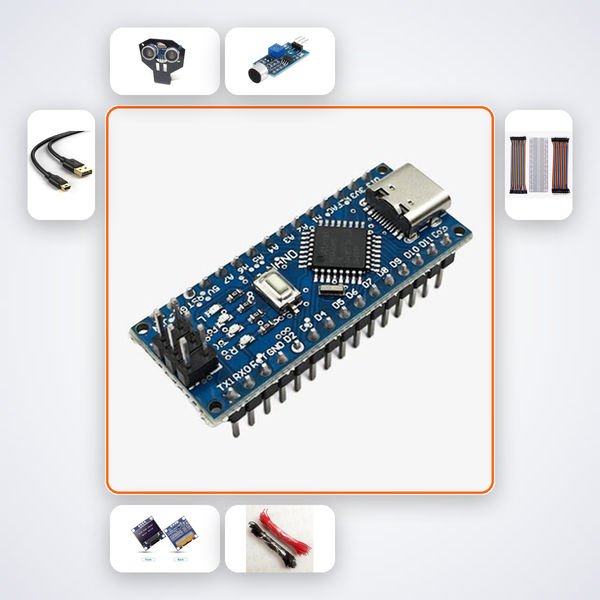

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 1 |
| HC-SR04 Ultrasonic Sensor | 1 |
| Sound Sensor | 1 |
| 0.96in OLED Display | 2 |
| Half Breadboard | 1 |
| MiniUSB Cable | 1 |
| Male-Male Jumper Wires | 20 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Designed for curious beginners aged 15-18, this project is ideal for CBSE Class 11-12 students exploring embedded systems, first-semester B.Tech ECE hobbyists, and ATL Tinkering Lab innovators. It's also a great choice for anyone building a unique demo for school exhibitions, mini-project submissions, or Smart India Hackathon ideation.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to access the AI companion that walks you through every step. You can also reach Compoden support via WhatsApp for additional help.
Will the bin lid open automatically?
This kit focuses on sensor-triggered display personalities; the lid open action is shown as an animation on the OLED screens. A servo-based lid mechanism is not included, but you can add one separately later.
Can I change the facial expressions?
Yes, the OLED displays are fully programmable. The AI companion includes a code customiser to help you create and upload your own bitmap expressions.
Do I need a soldering iron?
No, all connections are made using the included breadboard and jumper wires. You only need a computer with the Arduino IDE installed.
Touchless Bin - OLED display on robot shows different face expressions based on proximity and sound input - personality-driven robot interaction.
What's in this kit
- Arduino Nano
- HC-SR04 Ultrasonic
- Sound Sensor
- 0.96in OLED x2
- Half Breadboard
- MiniUSB Cable
- M-M Wires x20
