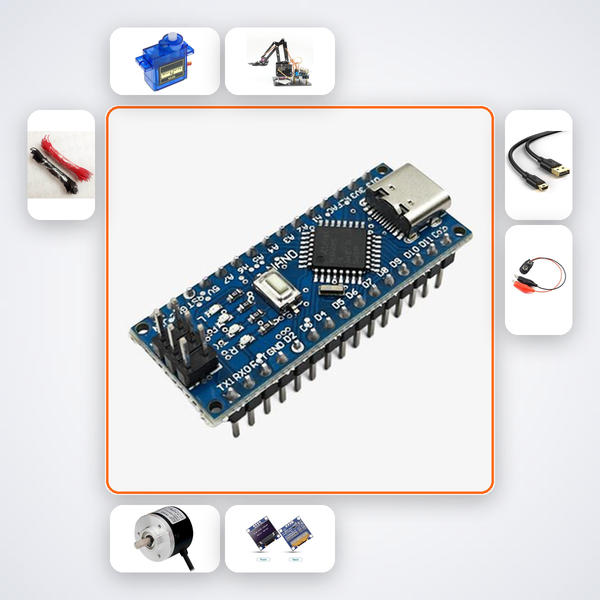

Arduino Inverse Kinematics Arm Kit — Build a 2-DOF Servo Arm That Solves IK Equations

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

What if your robotic arm could calculate exactly how to bend its joints to reach any point on a surface? This kit puts the power of inverse kinematics into your hands. You'll assemble a 2-DOF arm driven by three SG90 servos (one for the gripper), then program Arduino Nano to solve coordinate-to-angle transformations in real time. Move the end effector to the target position with precision — no trial-and-error guessing.

What You'll Build

A functional 2-DOF robotic arm that accepts XY coordinates via push buttons, calculates joint angles using inverse kinematics, and moves the gripper to the exact location. The 0.96-inch OLED displays the target position and computed angles in real time. Perfect for demonstrating mathematical robotics concepts in classrooms or hackathons.

What You'll Learn

• Implement inverse kinematics equations in C++ on Arduino Nano
• Control multiple servo motors for synchronized joint movement
• Read digital inputs from push buttons to set target coordinates
• Display sensor and computed data on an OLED screen via I2C

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Aspiring roboticists in CBSE Class 11-12 exploring coordinate geometry and kinematics. B.Tech ECE/EEE students tackling Smart India Hackathon projects or robotics club assignments. ATL Tinkering Lab mentors seeking a ready-to-assemble inverse kinematics demonstration. If you want to move beyond hobby servo sweeping and into computational motion planning, this kit is your launchpad.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
