Automate Testing with Arduino Mega: Build a Custom ATE System Kit
Automate Testing with Arduino Mega: Build a Custom ATE System Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Transform the way you validate hardware. This kit equips you to build a bench-top automated test station that routes signals from your device under test (DUT) to multiple measurement instruments through a 16-channel relay matrix, then executes a pass/fail script on the Arduino Mega - perfect for production testing, academic instrumentation labs, and rapid prototype verification.
What You'll Build
You'll assemble a fully functional ATE interface that connects a DUT to a signal generator, high-precision ADCs, current/voltage monitors, and an SD card logger. The 2.4-inch TFT screen displays real-time test status and results, while the DS3231 RTC timestamps every log entry. By the end of this build, you'll have a reliable test rig that can switch connections in milliseconds and run a sequence of measurements without manual probing.
What You'll Learn
- Program an Arduino Mega to orchestrate a relay matrix for multi-instrument DUT switching
- Interface parallel I2C sensors (ADS1115, INA219, AD9833) through a TCA9548A multiplexer
- Implement a pass/fail test algorithm with voltage, current, and frequency thresholds
- Log test results with RTC timestamps to microSD and display them on a TFT screen

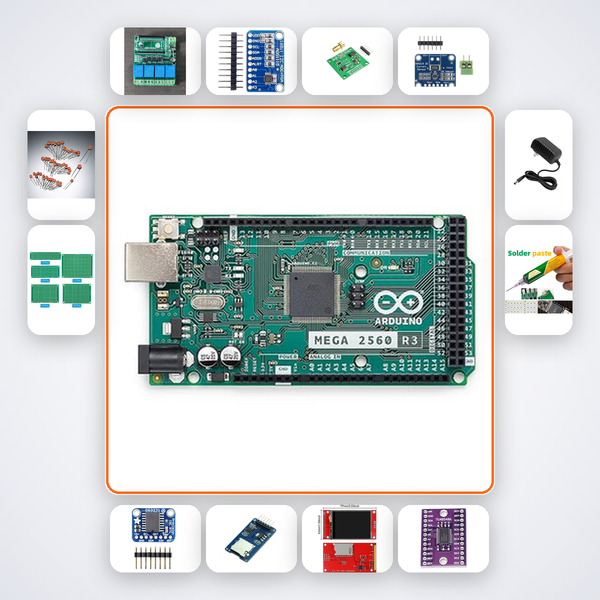

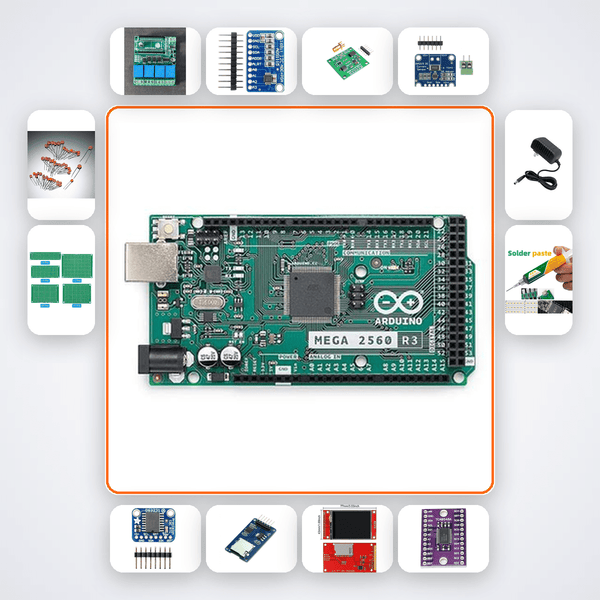

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| 8-ch Relay Module | 2 |
| ADS1115 ADC | 2 |
| AD9833 Signal Gen | 1 |
| INA219 | 2 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 2.4in TFT ILI9341 | 1 |
| TCA9548A I2C Mux | 1 |
| 100nF Caps | 15 |
| PCB Prototype Board | 4 |
| 12V 3A PSU | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This advanced ATE kit is built for B.Tech ECE/EEE final-year students designing automated test jigs for their capstone projects, Smart India Hackathon teams that need to prove hardware reliability under scripted conditions, and faculty setting up instrumentation labs at IIT, NIT, VIT or BITS. If you've outgrown manual multimeter probing and want to industrial-grade your testing workflow, this is your launchpad.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to start your AI companion. It recognizes your exact kit and offers step-by-step debugging. WhatsApp and email support are also included for more complex queries.
Can I test multiple DUTs automatically?
Yes, the two 8-channel relay modules give you 16 individually controllable switches. You can route signals from a single DUT through different test points sequentially, or even connect multiple DUTs to the same instrument chain under script control.
Does the kit include the DUT or external test instruments?
No - this kit builds the interface and control system. You supply your own DUT and any bench instruments (oscilloscope, multimeter, power supply) you wish to automate. The ATE acts as the switching and measurement hub between them.
Is advanced programming experience required?
Familiarity with Arduino IDE and C/C++ is expected. The AI companion provides the complete test script and walkthrough, but you should be comfortable uploading code and adjusting parameters. The wiring is intricate, so steady soldering skills are a must.
Arduino Mega drives relay matrix to connect DUT to multiple test instruments and runs pass/fail test script.
What's in this kit
Choose your assembly option:
- Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
