Solar Acoustic Raindrop Size Gauge Kit with Arduino Mega + MAX9814 Mic

SKU: CDN-KIT-0193-SLD Brand: Compoden Category: Electronics > Weather & Environment > Project Kits
Rs. 3,240.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Solar Acoustic Raindrop Size Gauge Kit with Arduino Mega + MAX9814 Mic — an expert-level kit.

Solar-Powered Raindrop Size Distribution with Arduino Mega

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 12-15 hrs Skill: Acoustic signal processing & data logging

Kit at a glance

What you build: A solar-powered rain event logger: a MAX9814 microphone under a metal plate hears each drop land, and an Arduino Mega logs when rain starts, stops and how hard it falls, timestamped by a DS3231. The OLED shows the current rain rate.

What's in the box

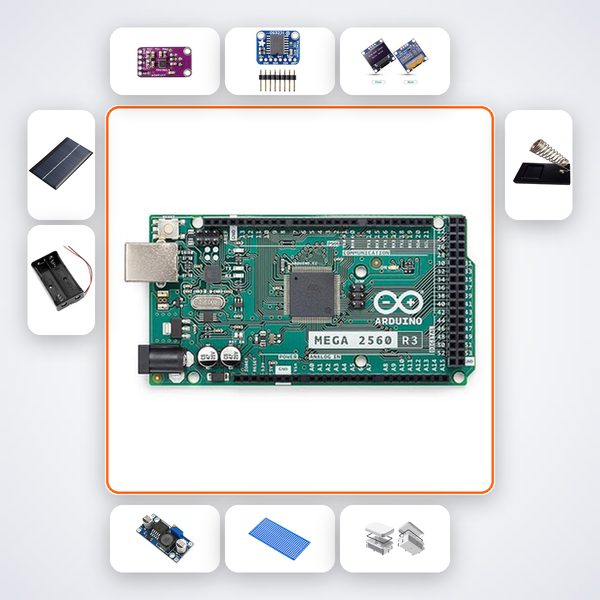

  • Arduino Mega 2560
  • MAX9814 Mic Amp
  • DS3231 RTC
  • MicroSD Module
  • 0.96in OLED
  • LM2596 Buck Converter
  • 100nF Caps × 10
  • 10kΩ Resistors × 5
  • PCB Prototype Board × 2
  • Waterproof Metal Plate
  • Waterproof Enclosure
  • Solar Panel 6V 1W
  • TP4056 Module
  • 18650 Cell × 2
  • Soldering Iron
  • Solder Wire
  • 18650 2-Cell Holder

Power: batteries included (2 × 18650), charged by the solar panel. A microSD card is not included.

Skill level: Advanced (12-15 hours).

Frequently asked questions

Does it measure rainfall in millimetres?

Not directly. It counts drop impacts and their strength, so compare it with a simple rain gauge to calibrate.

Can it run outdoors all season?

It is designed to, on the solar panel. Check the battery level in cloudy weeks.

Do I need to solder?

Yes. This is a soldered build, and the kit includes a soldering iron and solder.

Imagine deploying a weather station that doesn’t just count rain — it classifies every drop by size using sound. This kit lets you build a self-contained acoustic rain gauge that listens to raindrop impacts on a metal plate through a sensitive microphone, then processes the pitch to output real-time size distribution. With solar power and waterproof housing, you get a field-ready instrument that replaces costly disdrometers for research, agriculture, or hydrology.

What You'll Build

A solar-powered, IP65-enclosed instrument that logs raindrop count and size bins to a microSD card with DS3231 timestamps. The 0.96-inch OLED displays live histograms, while the MAX9814 mic amplifier captures impact frequencies from drizzle to monsoon bursts. Everything is powered by two 18650 batteries charged via a TP4056 module and 6V solar panel, making it completely independent of mains power for weeks.

What You'll Learn

  • Acquire and condition raindrop impact audio with a MAX9814 microphone amplifier for the Arduino Mega’s ADC, filtering electromechanical noise with on-board capacitors.
  • Perform real-time FFT analysis to map impact pitch to drop size bins, distinguishing drizzle droplets from heavy rain.
  • Log size-distribution data to SD card with DS3231 RTC synchronization, creating a dataset ready for export and analysis.
  • Design a solar-charged power supply with lithium battery protection, deep-sleep firmware, and LM2596 buck regulation for long-term outdoor deployment.

Kit Contents

Component Quantity
Arduino Mega 2560 1
MAX9814 Mic Amp 1
DS3231 RTC 1
MicroSD Module 1
0.96in OLED 1
LM2596 Buck Converter 1
100nF Caps 10
10kΩ Resistors 5
PCB Prototype Board 2
Waterproof Metal Plate 1
Waterproof Enclosure 1
Solar Panel 6V 1W 1
TP4056 Module 1
18650 Cell 2
Soldering Iron 1
Solder Wire 1
18650 2-Cell Holder 1

Choose your assembly option:

  • Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
  • Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
