Arduino Solar Battery Charger Monitor Kit with Arduino Nano

SKU: CDN-KIT-2675-CL Brand: Compoden Category: Electronics > Kids Starter STEM > Project Kits
Rs. 1,140.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Arduino Solar Battery Charger Monitor Kit with Arduino Nano — a beginner-level kit.

Arduino Solar Battery Charger Monitor Kit — Power Up Your STEM Skills While Harnessing the Sun

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Solar Energy Monitoring & Electronics

Imagine building your own solar-powered gadget that not only charges a battery but also shows exactly how much energy is flowing, all on a crisp OLED screen. This kit brings that idea to life, teaching you about solar energy and electronics in one hands-on project. Whether it's for a science exhibition, a school project, or just weekend tinkering, you'll end up with a fully functional solar charger monitor that lights up your understanding of renewable energy.

What You'll Build

You'll construct a functional solar battery charger monitor that uses a 5V solar panel to charge a rechargeable battery. The Arduino Nano reads the voltage through a divider circuit and displays the charge level, voltage, and status on a bright 0.96-inch OLED. This isn't a toy — it's a real working circuit that demonstrates how solar panels, diodes, and microcontrollers work together to harness the sun's energy.

What You'll Learn

  • How to wire a solar panel and diode to prevent reverse current flow
  • Using voltage dividers to safely measure battery voltage with Arduino’s analog pins
  • Programming an OLED display to show real-time sensor data and charge states
  • Fundamentals of solar energy harvesting and battery charging cycles

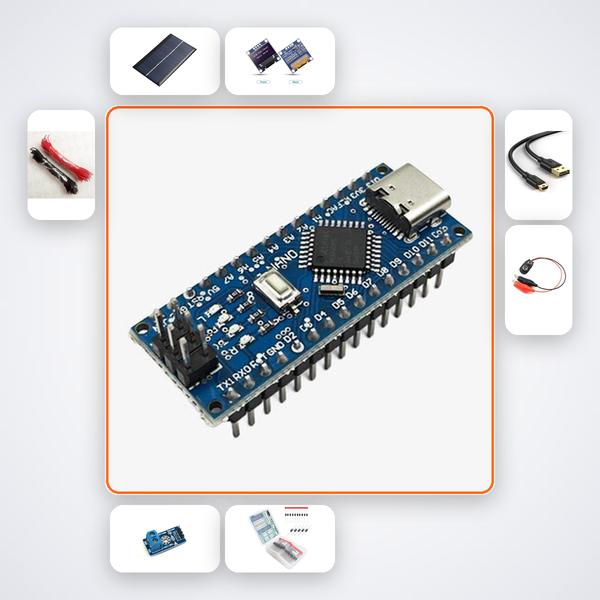

Kit Contents

Component Quantity
Arduino Nano 1
Mini Solar Panel 5V 1W 1
0.96in OLED 1
Voltage Divider Resistors 4
1N4007 Diode 2
Half Breadboard 1
MiniUSB Cable 1
M-M Wires 15

Who This Kit Is For

Ideal for makers in CBSE schools, ATL Tinkering Lab students, and anyone who wants to dive into solar energy and electronics. It's also a good weekend project. No prior soldering or coding experience is needed.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code inside the box to chat with the AI companion, or simply drop us a message on WhatsApp. We’ll guide you through every connection and line of code until your solar monitor lights up.

Can I use the monitor with a different battery or solar panel later?

Yes, the voltage divider design is adaptable. Once you understand the basics, you can modify the circuit to monitor larger batteries or a different panel with just a few resistor changes.

Do I need to write code from scratch, or is it provided?

The kit includes pre-written Arduino code, ready to upload via the included MiniUSB cable. You’ll learn how it works and can tweak the display messages yourself.

Solar panel charges a battery while Arduino monitors voltage and displays charge state on OLED.
