Door + Motion MQTT Alert Kit: ESP32, PIR, 2 Reed Switches

SKU: CDN-KIT-4007 Brand: Compoden Category: Electronics > AI IoT > Project Kits
Rs. 900.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Door + Motion MQTT Alert Kit: ESP32, PIR, 2 Reed Switches — a beginner-level kit.

Door + Motion MQTT Alert Kit: ESP32, PIR, 2 Reed Switches

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 3-4 hrs Skill: IoT programming & pattern classification

Kit at a glance

What you build: A door and motion alert: two reed switches on doors and a PIR feed an ESP32, which sends an MQTT alert when a door opens or motion is seen while the system is armed. Red LEDs and a piezo buzzer give a local warning.

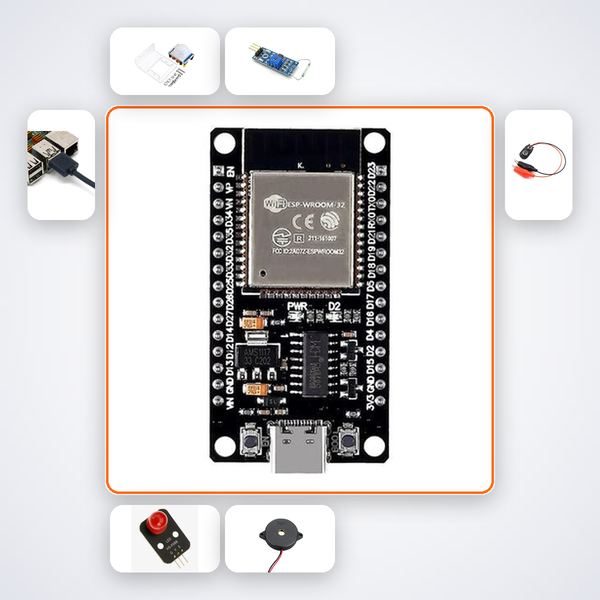

What's in the box

  • ESP32 Dev Board
  • HC-SR501 PIR
  • Reed Switch × 2
  • LED Red × 2
  • Piezo Buzzer
  • MicroUSB Cable
  • M-M Wires × 15

Power: USB. A USB charger is not included.

Skill level: Beginner (3-4 hours).

Frequently asked questions

Does it switch lights?

No. The old title said so, but there's no relay; it sends alerts.

Is it a certified alarm?

No. It's a learning project.

Stop wasting electricity in empty rooms and get a smarter way to know when something unusual happens. This kit combines automatic light control with a machine-learning–inspired sequence classifier on an ESP32. You'll build a system that learns your daily movement flow — using PIR motion and two door reed switches — then raises an MQTT security alert when an intrusion pattern is detected.

What You'll Build

A wall-mount prototype that detects room occupancy via infrared motion and magnetic door contacts. It uses the ESP32 to decide whether a series of door openings and motion events matches your regular pattern or an unexpected sequence. When an anomaly is flagged, the buzzer sounds and a message is published via MQTT. The device also switches off lights when no one is in the room, directly cutting energy waste.

What You'll Learn

  • Wiring and reading a PIR motion sensor and magnetic reed switches on ESP32 GPIO pins
  • Programming event-sequence analysis to distinguish routine entries from forced or tailgating intrusions
  • Setting up Wi-Fi and MQTT client on ESP32 to push real-time security alerts
  • Integrating hardware with logical rules for energy-saving automation

Kit Contents

Component Quantity
ESP32 Dev Board 1
HC-SR501 PIR 1
Reed Switch 2
LED Red 2
Piezo Buzzer 1
MicroUSB Cable 1
M-M Wires 15

Who This Kit Is For

CBSE students looking for a practical IoT project that merges energy conservation with security. B.Tech ECE/EEE undergraduates can use it for lab mini-projects on embedded systems or MQTT communication. ATL tinkering lab mentors will find it a ready-made platform to teach sensor fusion and event-driven logic. Smart India Hackathon participants can extend it into a full building automation prototype.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code inside the box to access your AI companion, which guides you through wiring, code upload, and debugging. You can also drop a WhatsApp message for human support.

Do I need any prior soldering or coding experience?

No soldering is required — all connections use jumper wires directly on a breadboard (breadboard not included). We provide pre‑tested code in Arduino IDE format, and the AI companion explains each line.

Can I extend this kit to control actual lights or send phone notifications?

Yes. Add a relay module to switch real AC bulbs, and configure the MQTT broker to forward alerts to IFTTT or Telegram for phone push notifications.

Is this kit suitable for CBSE Computer Science project?

Absolutely. The project covers sensor integration, Wi‑Fi networking, MQTT protocol, and logical decision‑making — all part of the CBSE CS curriculum and live‑project requirements.

Energy Saving — PIR and door reed switch event sequences on ESP32 classify intrusion vs routine movement pattern — MQTT security alert.
