Automatic Window Blind Kit with Arduino Uno + Stepper Motor

SKU: CDN-KIT-1609-CL Brand: Compoden Category: Electronics > Smart Home & Living > Project Kits
Rs. 2,540.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Automatic Window Blind Kit with Arduino Uno + Stepper Motor — a beginner-level kit.

Experience Smart Home Convenience: Build Your Own Automatic Window Blind with Arduino Uno & Stepper Motor

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 3-4 hrs Skill: Smart home automation

Imagine your window blinds opening gently as the sun rises, without you touching a switch. This kit lets you build a light-sensing, time-based blind controller that uses a BH1750 lux sensor, real-time clock, and stepper motor. Perfect for creating a smarter home, this project teaches sensor integration, motor control, and scheduled automation—turning your window into an intelligent asset.

What You'll Build

You'll assemble a fully functional automatic blind system on a breadboard. The OLED displays current light level and scheduled open/close times. At dawn, the stepper motor rotates a pulley (or blind mechanism) to open the blinds; at dusk, it reverses to close them. You can adjust the light threshold and schedule via the code, learning how Arduino interacts with real-world conditions.

What You'll Learn

  • Interface the BH1750 digital light sensor and read illuminance in lux
  • Set up the DS3231 RTC to trigger actions at specific times
  • Control a NEMA 17 stepper motor with the A4988 driver, including direction and steps
  • Program Arduino to compare sensor data with timed thresholds and automate movement

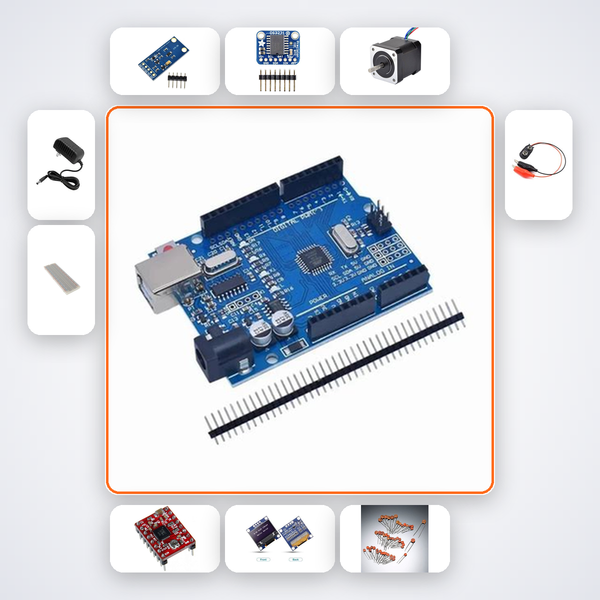

Kit Contents

Component Quantity
Arduino Uno R3 1
BH1750 1
DS3231 RTC 1
NEMA 17 Stepper 1
A4988 Driver 1
0.96in OLED 1
100nF Capacitors 5
12V 1A PSU 1
400-pt Breadboard 1
M-M Wires 20

Who This Kit Is For

This beginner-friendly kit is ideal for CBSE students exploring embedded systems, B.Tech ECE/EEE first-year project work, and ATL Tinkering Lab innovators. It’s also a perfect DIY weekend build for any smart home enthusiast in India. If you're preparing for Smart India Hackathon or need a working model for a science exhibition, this kit delivers a tangible, learning-rich outcome.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Open the AI companion via the QR code on your box. It walks you through every connection and code line. You can also send a WhatsApp message and a real engineer will reply.

Can I change the open/close times?

Yes. The Arduino sketch uses the DS3231 RTC; you can modify the code to set any sunrise and sunset times, or switch to fully light-triggered mode using the BH1750 threshold.

Does this kit include the actual blind mechanism?

The kit provides the electronics and motor. You'll need to attach a simple pulley or string to a window blind or cardboard model. We include mounting ideas and code examples for a working prototype.

BH1750 lux and RTC schedule drive stepper to open blinds at sunrise and close at sunset.
