Aquarium Auto Top Off Kit with Arduino Uno + Ultrasonic

SKU: CDN-KIT-1628-CL Brand: Compoden Category: Electronics > Smart Home & Living > Project Kits
Rs. 980.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Aquarium Auto Top-Off Kit: Arduino Uno, HC-SR04, Mini Pump — a beginner-level kit.

Aquarium Auto Top-Off Kit: Arduino Uno, HC-SR04, Mini Pump

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Sensor-based automation

Kit at a glance

What you build: An aquarium auto top-off: an HC-SR04 above the tank watches the water level, and when evaporation drops it below your mark an Arduino Uno runs a small pump through a relay to refill from a reservoir.

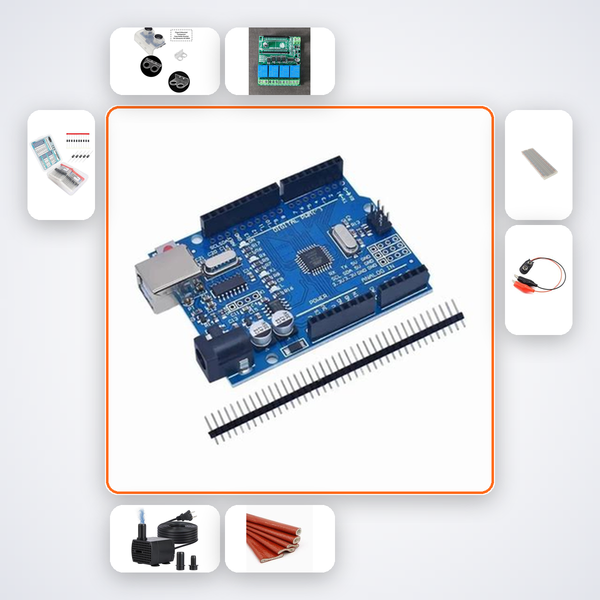

What's in the box

  • Arduino Uno R3
  • HC-SR04
  • 5V Relay Module
  • Mini Submersible Pump
  • Silicone Tube 30cm
  • 1N4007 Diode × 3
  • 10kΩ Resistors × 5
  • 400-pt Breadboard
  • M-M Wires × 20
  • 9V Battery Snap

Power: 9V battery, not included. A 9V battery won't last long with relays on; a USB or DC adapter suits it better. A reservoir container is not included.

Skill level: Beginner (2-3 hours, no soldering).

Frequently asked questions

What stops it overfilling?

It stops at your upper mark; add a timeout in code as a second safety.

Does steam or splash affect the sensor?

Keep it dry and pointing straight down.

Water evaporation can silently drop your aquarium level, stressing fish and plants. This kit lets you build a smart sensor system that monitors the water surface with an ultrasonic module and activates a pump to refill only when needed. In just a couple of hours, you'll have a working automatic top-off proven to keep your tank stable without manual checking.

What You'll Build

A fully functional water top-off unit that uses an HC-SR04 to measure the distance to the water surface. When the reading falls below your set threshold, the Arduino Uno triggers a relay that switches on a submersible pump, adding water through the silicone tube. It stops automatically once the safe level is restored—perfect for freshwater aquariums, planted tanks, or classroom hydroponic demonstrations.

What You'll Learn

  • How to interface an HC-SR04 ultrasonic sensor with Arduino and avoid false readings
  • Writing Arduino code to compare real-time distance and control a relay module
  • Safe wiring of a submersible pump using a relay and flyback diode protection
  • Calibrating water level thresholds for reliable automation and real-world sensor logic

Kit Contents

Component Quantity
Arduino Uno R3 1
HC-SR04 1
5V Relay Module 1
Mini Submersible Pump 1
Silicone Tube 30cm 1
1N4007 Diode 3
10kΩ Resistors 5
400-pt Breadboard 1
M-M Wires 20
9V Battery Snap 1

HC-SR04 monitors aquarium level. Relay pump refills when evaporation lowers level below threshold.
