Bench Power Supply Monitor Kit with Arduino Uno + LED

SKU: CDN-KIT-2105-CL Brand: Compoden Category: Electronics > Maker Tools & Instruments > Project Kits
Rs. 960.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Bench Power Supply Monitor Kit: Arduino Uno, INA219, OLED — a beginner-level kit.

Bench Power Supply Monitor Kit: Arduino Uno, INA219, OLED

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Electronics instrumentation

Kit at a glance

What you build: A bench power supply monitor: an INA219 sits between your bench supply and the circuit under test, and an Arduino Uno shows live voltage and current on an OLED with the peak and average, so you can see what a project really draws.

What's in the box

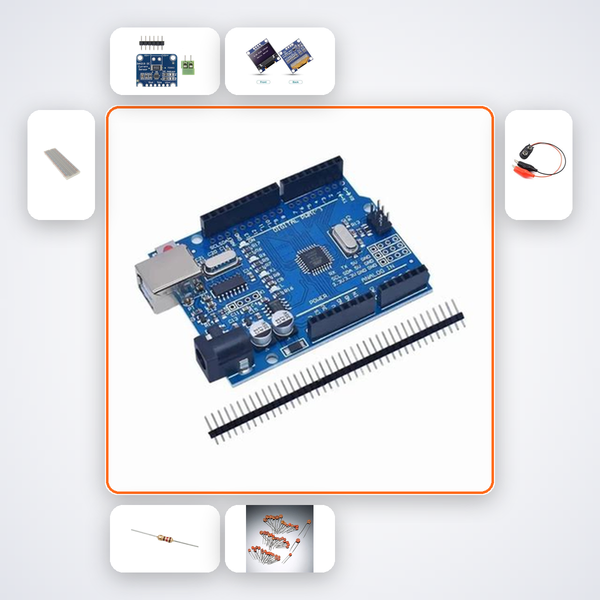

  • Arduino Uno R3
  • INA219
  • 0.96in OLED
  • 4.7kΩ Resistors × 5
  • 100nF Caps × 5
  • 400-pt Breadboard
  • M-M Wires × 20
  • 9V Battery Snap

Power: 9V battery, not included.

Skill level: Beginner (2-3 hours, no soldering).

Frequently asked questions

What can it measure?

DC up to about 26V and 3.2A with the standard module.

Why track the peak?

Short surges can be much higher than the average.

Ever wanted a dedicated display for your bench power supply that shows real-time voltage and current, tracks peak and average values, and can be customized for your projects? This kit transforms a basic Arduino Uno, an INA219 current sensor, and a crisp 0.96-inch OLED display into a precise monitoring instrument that sits right on your workbench. You'll learn sensor interfacing, data logging concepts, and create a tool you'll use every day.

What You'll Build

A functional bench PSU monitor with an OLED screen that reads out live voltage and current, displays peak values since power-on, and calculates average consumption — useful for debugging circuits, testing power supplies, or characterising component behaviour.

What You'll Learn

  • Interface INA219 DC current/voltage sensor with Arduino over I2C
  • Drive 0.96inch OLED displays using U8g2 library and custom fonts
  • Implement real‑time data acquisition with peak detection and moving average algorithms
  • Build a standalone, battery‑powered measurement instrument for your electronics workbench

Kit Contents

Component Quantity
Arduino Uno R3 1
INA219 1
0.96in OLED 1
4.7kΩ Resistors 5
100nF Caps 5
400-pt Breadboard 1
M-M Wires 20
9V Battery Snap 1

Who This Kit Is For

This kit suits CBSE students exploring electronics in ATL Tinkering Labs, makers building their first instrumentation project, and anyone wanting an educational weekend build. B.Tech ECE/EEE freshmen will also appreciate a quick, hands‑on introduction to power monitoring.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Our AI companion walks through each step, and if you're still stuck, you can send a WhatsApp message — we respond.

Do I need any additional tools or equipment?

Yes, a USB cable (USB‑A to USB‑B) to upload code to the Arduino and a 9V battery are needed. A computer with the free Arduino IDE is required — installation is covered step by step by the AI companion.

Can I monitor my own bench power supply with this kit?

Absolutely. The INA219 can measure up to 26V and 3.2A, covering most hobbyist bench supplies. Just connect the supply's output to the monitor's input terminals.

How do I test if the INA219 sensor is working correctly?

The AI companion includes a simple diagnostic sketch that prints raw readings to the Serial Monitor. You can compare them with a multimeter or a known load — if values are off, the troubleshooting section guides you through I2C address checks and wiring verification.

INA219 monitors bench PSU voltage and current. OLED shows live values with peak and average tracking.
