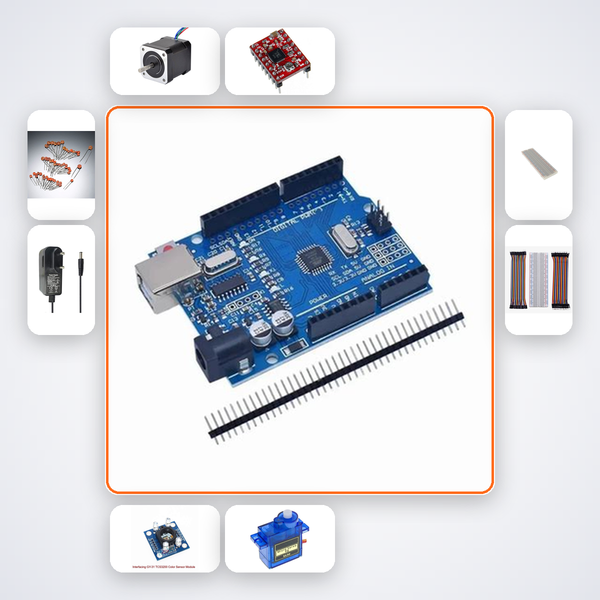

Build a Mini Industrial Sorting Line: Conveyor Belt Colour Sorter Kit with Arduino Uno

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

You’ll assemble a motorized conveyor belt that scans objects with a TCS3200 colour sensor and automatically routes them to red, green, or blue bins using servo-powered diverters — a real-world automation system scaled to your workbench. This kit turns an Arduino Uno into the brain of a responsive electromechanical line, perfect for students who want to go beyond blinking LEDs and tackle genuine industrial logic.

What You'll Build

A fully functional colour sorting machine that mimics industrial automation lines. Once assembled and calibrated, place a coloured block on the belt and watch as the stepper motor advances it under the sensor. The Arduino reads the colour data, activates the corresponding servo gate, and the piece slides into the correct chute. You don’t just write code — you integrate a moving belt, precision sensing, and physical diverter mechanics into one cohesive project that runs reliably on a 400-point breadboard.

What You'll Learn

• How to interface a TCS3200 colour sensor with Arduino to detect RGB values and map them to sorting bins
• Precise stepper motor control using the A4988 driver for synchronized belt movement and object positioning
• Servo timing and diverter mechanism design that routes objects cleanly without jams
• Debugging sensor noise, calibration thresholds, and software logic in an integrated mechatronic system

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Aimed at CBSE Class 11–12 students exploring embedded systems in Skill Education, first- and second-year B.Tech ECE/EEE learners building a mini project, and ATL Tinkering Lab participants who need a structured yet challenging automation build. It’s also a strong fit for Smart India Hackathon prototypes where real-time sensor-based sorting is a core function.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
