Cyclist Air Quality Tracker Kit
Build Your Own Cycling Air Quality Tracker – Arduino & PMS5003 Pollen Sensor Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine cycling with a handlebar display that warns you when pollen levels spike, helping you avoid allergy triggers. This kit lets you build a compact pollen counter using a PMS5003 laser sensor and an Arduino, displaying particle counts in the 5–30µm range on an OLED—just like the size of common pollen grains.
What You'll Build
You’ll create a lightweight, handlebar-mountable module that estimates airborne pollen and shows a real-time reading on a 0.96-inch OLED display. The PMS5003 laser sensor counts individual particles, and the Arduino interprets the count in the 5–30µm range—the size of most pollen grains—giving you a live pollen indicator. Powered by a 9V battery, it’s truly portable.
What You'll Learn
- How to wire a laser particle sensor to a microcontroller using UART communication
- Writing Arduino code to read, parse, and interpret real-time sensor data
- Displaying dynamic environmental values on an I2C OLED screen
- Understanding airborne particulate matter (PM) and its impact on outdoor health

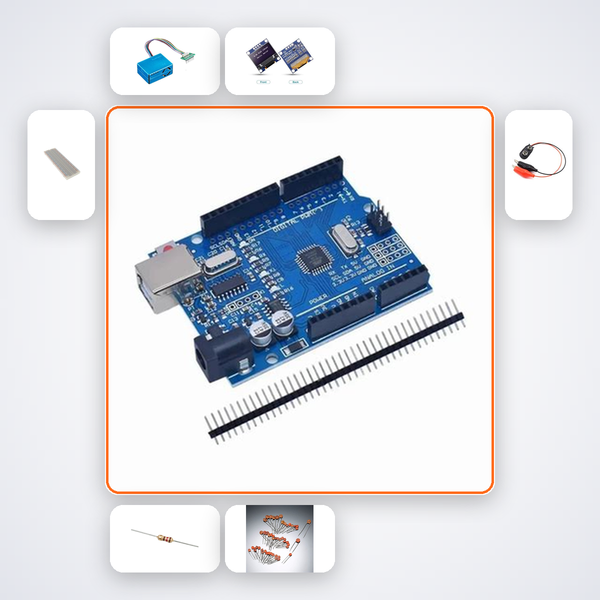

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| PMS5003 Particle Sensor | 1 |
| 0.96in OLED | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Caps | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| M-F Wires | 10 |
| 9V Battery Snap | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Cycling Air — PMS5003 particle sensor estimates airborne pollen by counting particles in 5-30µm range on OLED.
What's in this kit
- Arduino Uno R3
- PMS5003 Particle Sensor
- 0.96in OLED
- 4.7kΩ Resistors x5
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- M-F Wires x10
- 9V Battery Snap
