Electric Curtain Tie-Back Kit with Arduino Uno + Servo

SKU: CDN-KIT-0244-CL Brand: Compoden Category: Electronics > Home Automation > Project Kits
Rs. 510.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Electric Curtain Tie-Back Kit with Arduino Uno + Servo — a beginner-level kit.

Bring Mini Home Automation to Life with the Electric Curtain Tie-Back Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Servo motor control with buttons

Have you ever wanted to automate a curtain without complex setups? This kit lets makers build a working model of an electric curtain tie-back that rotates a fabric arm with a simple button press. Using an Arduino Uno and an SG90 servo, pressing one button swings the tie-back open, and another closes it — just like a miniature smart home device. It’s a playful, hands-on entry into home automation and robotics that connects coding to a visible, satisfying movement.

What You'll Build

By the end of this project, you’ll have a self-contained model curtain with a servo-powered tie-back mechanism. Two tactile buttons control the servo: one rotates it 90 degrees to hold the curtain fabric back, the other returns it to release the fabric. The entire circuit sits on a breadboard, and the movement is crisp and repeatable. It’s a proof-of-concept you can later scale to larger curtains or combine with sensors for automatic light-based control.

What You'll Learn

  • How to program a servo motor to rotate to exact angles using the Arduino Servo library
  • Reading tactile button inputs with pull-down resistors and debounce logic
  • Assembling circuits on a breadboard without soldering
  • Writing conditional code that responds to user input in real time

Kit Contents

Component Quantity
Arduino Uno R3 1
SG90 Servo 1
Tactile Button 2
10kΩ Resistor 5
400-pt Breadboard 1
M-M Wire 15
9V Battery Snap 1

Who This Kit Is For

This starter kit fits naturally into ATL Tinkering Lab sessions, CBSE science projects, and home STEM explorations. Learners who can follow parental guidance will get their first taste of physical computing and servo mechanics. It also serves as a quick weekend build for parents introducing automation concepts without overwhelming complexity. If you’re preparing for a school exhibition or just want a satisfying maker-hour activity, this kit delivers.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code to start a conversation with your AI companion, specific to this kit. It guides wiring placement, code logic, and troubleshooting. If you need human help, our WhatsApp support is a message away.

Do I need any prior coding experience?

Not at all. The included guide explains every line of the Arduino sketch, and you can copy-paste the ready-made code. Over time you’ll understand how it works and can modify button responses.

Can I control the curtain with a smartphone instead of buttons?

This kit uses physical buttons for direct, immediate control. Once you master the servo and Arduino, you can later add a Bluetooth module (like HC-05) and write an app—but that’s a great next-step project.

What kind of curtain can I use this with?

The project is a working model using lightweight fabric or ribbon. It demonstrates the principle; scaling to real curtains requires a stronger servo and mechanical design, which older makers often explore after this kit.

Button press rotates servo 90 degrees to tie back or release curtain fabric on a model.

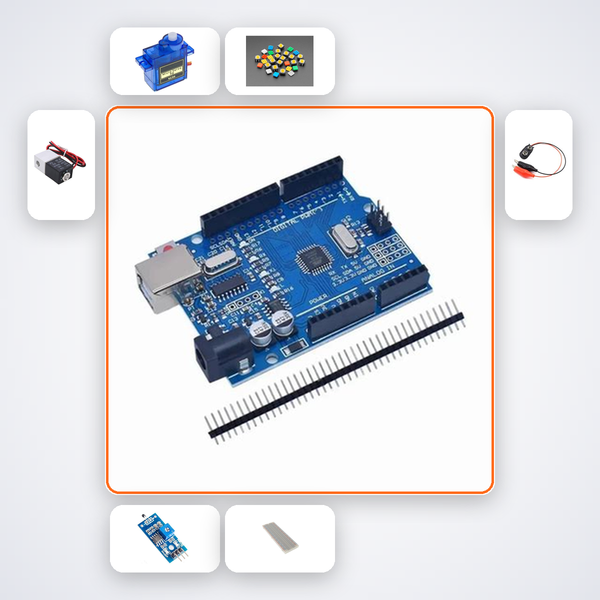

What's in this kit

Do you deliver across India?

Yes. We ship Electric Curtain Tie-Back Kit with Arduino Uno + Servo across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Orders ship in 3-7 days.

What payment options are available for Electric Curtain Tie-Back Kit with Arduino Uno + Servo?

We accept UPI, all major debit and credit cards, and Cash on Delivery (COD) available.

Built and shipped from Compoden, with UPI and cards, plus COD available.
