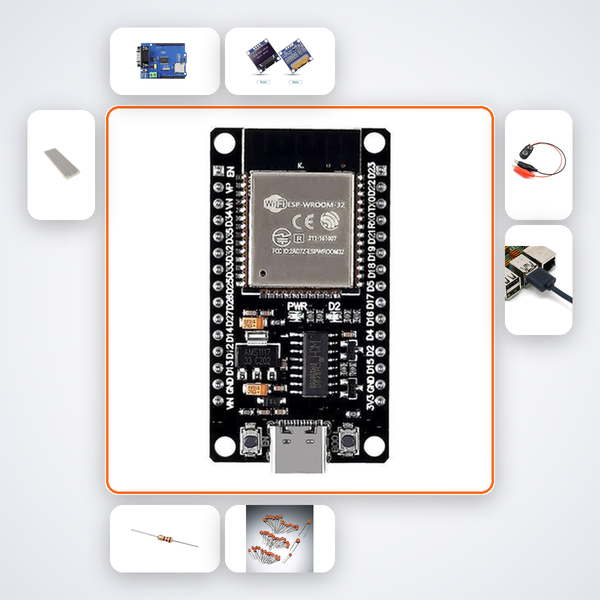

ESP32 CAN Bus Vehicle Data Reader Kit: Build Your Own Wireless Dashboard

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Imagine pulling real-time RPM and vehicle speed straight from your car's OBD-II port and streaming it wirelessly to an OLED screen you built yourself. This kit puts automotive CAN bus technology directly into your hands, turning raw vehicle data into a sleek digital dashboard using the ESP32 and MCP2515 CAN controller. No more guessing what's happening under the bonnet — now you can code, read, and display it.

What You'll Build

You'll assemble a working OBD-II data reader that captures live RPM and speed PIDs from any OBD-II compliant vehicle, processes the CAN frames with the MCP2515, and pushes the values to a crisp 0.96-inch OLED display over the ESP32’s WiFi. The final build sits neatly on a breadboard, ready to plug into your car’s diagnostic port and start logging — a real IoT dashboard that moves with you.

What You'll Learn

• Decode standard OBD-II PIDs for RPM and vehicle speed using the MCP2515 CAN controller
• Interface the MCP2515 with an ESP32 over SPI and handle CAN bus interrupts
• Transmit live sensor data via WiFi to a local web dashboard or a 0.96-inch OLED display
• Interpret CAN frame structure and apply filter/mask settings for specific vehicle messages

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This intermediate project speaks directly to automotive enthusiasts and engineering students who want to break into vehicle IoT. If you're a B.Tech ECE or EEE student hunting for a Smart India Hackathon-ready concept, or a CBSE Class 12 student exploring mechatronics, this kit gives you a real car interface to experiment with. IIT, NIT, VIT, and BITS project labs often pick this combo for rapid prototyping in the connected vehicles domain.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
