Bin Fill-Level Monitor Kit with BBC micro:bit v2 + US-100

SKU: CDN-KIT-4306 Brand: Compoden Category: Electronics > Kids Starter STEM > Project Kits
Rs. 2,723.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Bin Fill-Level Monitor Kit with BBC micro:bit v2 + US-100 — a beginner-level build.

Build a Bin Fill-Level Monitor with BBC micro:bit v2 and a US-100 Ultrasonic Sensor

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Distance sensing and level display with micro:bit

Mount the ultrasonic sensor under a bin lid and the micro:bit shows how full the bin is on its LED grid, with a sound from its built-in speaker when it reaches the level you set. It runs on two AA batteries, so it can sit anywhere.

What You'll Build

You connect the US-100 sensor to the micro:bit v2 with jumper wires and crocodile clips, and power it from the switched 2xAA holder. The program measures the distance to the contents, converts it into a fill level using the bin's depth, shows a bar on the LED grid, and plays a short sound from the micro:bit's speaker when the level passes your threshold.

What You'll Learn

  • Measuring distance with a US-100 ultrasonic sensor
  • Converting distance into a fill percentage
  • Showing a level bar on the micro:bit LED grid
  • Playing sounds on the micro:bit v2 speaker

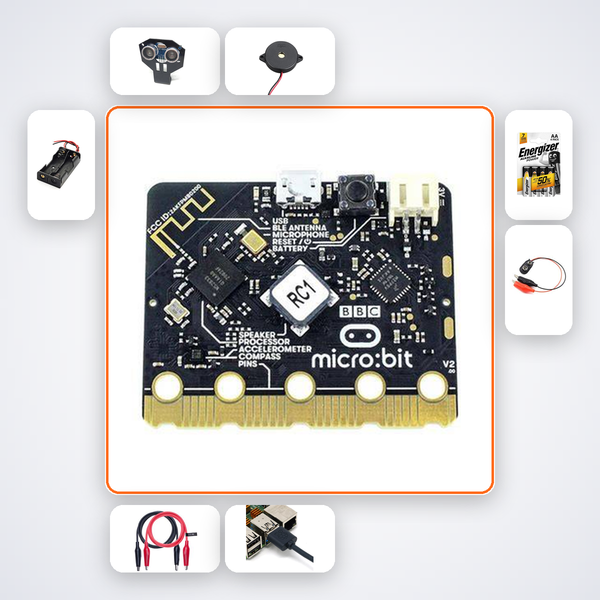

Kit Contents

Component Quantity
BBC micro:bit v2 1
US-100 Ultrasonic Distance Sensor Module 1
2xAA Battery Holder with Switch 1
AA Alkaline Battery 1.5V 2
Crocodile Clip (Alligator Clip) - 50mm, PVC Sleeve, 5A 1
Dupont Jumper Wire Kit (M-M, M-F, F-F, 20cm, 22AWG) 1

Who This Kit Is For

Beginners, classrooms using micro:bit, and anyone who wants to know when a bin, a feed hopper or a storage box needs attention.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Is there a separate buzzer?

No. The micro:bit v2 has a built-in speaker, which plays the sound.

Can I code it with blocks?

Yes. The micro:bit supports block-based coding as well as Python.

How long do the batteries last?

It depends on how often it measures. Measuring every few seconds instead of continuously makes them last much longer.

BBC micro:bit v2 bin-level monitor: a US-100 ultrasonic sensor shows the fill level on the LED grid, on two AA batteries.
