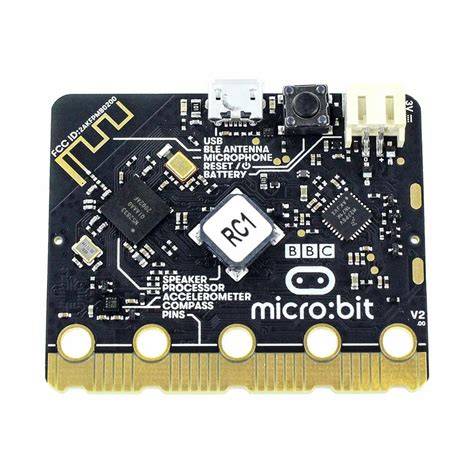

BBC Micro:bit v2 – Compact ARM Board with LED Matrix, Mic & Sensors

SKU: CDN-0899 Brand: Compoden Category: Display
Rs. 1,770.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 85423100
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

BBC Micro:bit v2 – Compact ARM Cortex-M4 Board with LED Matrix, Mic & Sensors

The BBC Micro:bit v2 is a pocket-sized microcontroller board designed for education and prototyping. It features a 32-bit ARM Cortex-M4 processor, an onboard microphone and speaker, and a 5x5 LED matrix for visual output. With built-in sensors and wireless connectivity, it's ideal for teaching coding, building wearables, and experimenting with IoT.

Key Specifications

Specification Value
Processor ARM Cortex-M4 at 64 MHz
Memory 512 KB Flash, 128 KB RAM
Display 5x5 LED matrix (25 red LEDs)
Sensors Accelerometer, magnetometer, light sensor, temperature sensor, touch logo
Audio Onboard microphone, speaker, and MEMS mic
Connectivity Bluetooth 5.1, 2.4 GHz radio, microUSB, edge connector

What You Can Build With This

Compatibility

This board works with any platform that supports micro:bit, including MakeCode (block-based and JavaScript) and MicroPython. It can interface with 3.3V-compatible sensors, motors, and modules via the edge connector. The micro:bit v2 is compatible with all standard micro:bit accessories and add-on boards such as the Kitronik Inventor's Kit.

Wiring Notes

Power the board via the microUSB port (5V) or a 3V battery pack. Use the edge connector's 3V and GND pins for external components. The pins operate at 3.3V logic; do not exceed 3.3V on I/O lines. For analog input, use pins 0, 1, or 2 with a reference of 3.3V.

Is this compatible with Arduino?

The micro:bit v2 is not directly compatible with Arduino; it uses a different architecture and programming environment. However, you can use micro:bit with Arduino IDE via third-party libraries, but it's not officially supported.

Can I power it with a 5V supply?

The board is designed to be powered via microUSB (5V) or a 3V battery pack. Applying 5V directly to the edge connector 3V pin can damage the board. Use the onboard regulator for 5V USB input only.

Does it include a battery?

No, the micro:bit v2 does not come with a battery. It requires a separate battery pack (3V or 2xAAA) or can be powered via USB.

Free Setup Handoff Document Included

Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.

Pinout, specs and project ideas on Soldr →
