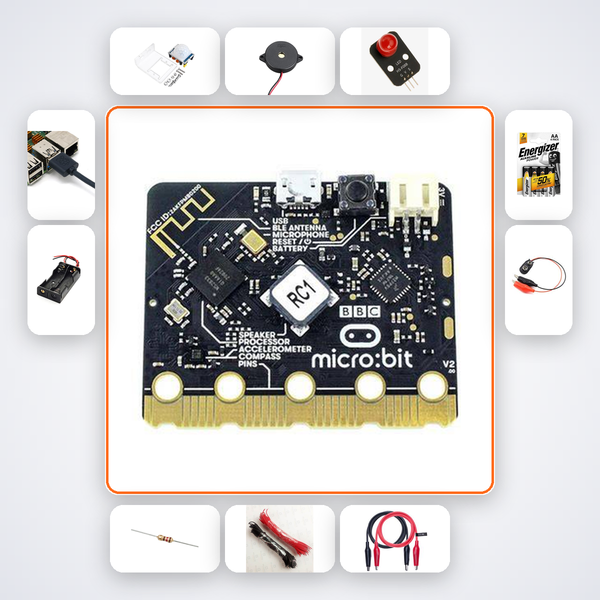

Home Security Motion Sensor Kit with BBC Micro:bit
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Build Your First Motion Sensor Alert with BBC Micro:bit – Beginner Motion Sensor Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Turn the BBC Micro:bit into a personal security guard for your room. This starter kit lets makers build a motion-sensing alarm that beeps and blinks red whenever someone enters. It’s a fun introduction to how everyday security systems work, completely safe and solderless with alligator clips and a breadboard.
What You'll Build
A working motion-activated alarm system. When the PIR sensor detects movement, the micro:bit triggers a piezo buzzer and flashes two red LEDs. You can customise the buzzer tone and LED patterns using simple block code in MakeCode. It’s a hands-on way to understand how burglar alarms and automatic lights function.
What You'll Learn
- How infrared motion sensors detect people
- Writing and uploading code to BBC Micro:bit using MakeCode
- Connecting sensors and output devices with crocodile clips and breadboard
- Logical thinking: trigger-and-response programming (if motion, then alarm)
Kit Contents
| Component | Quantity |
|---|---|
| BBC Micro:bit v2 | 1 |
| HC-SR501 PIR | 1 |
| Piezo Buzzer | 1 |
| Red LED | 2 |
| 100Ω Resistors | 3 |
| Half Breadboard | 1 |
| Crocodile Clips | 4 |
| MicroUSB Cable | 1 |
| AA Battery Holder | 1 |
| AA Batteries | 2 |
| M-M Wires | 10 |
Who This Kit Is For
A good first electronics project. Ideal for
Home Security — PIR sensor triggers a micro:bit alarm and flashes LEDs when motion is detected — first home security project.
What's in this kit
- BBC Micro:bit v2
- HC-SR501 PIR
- Piezo Buzzer
- Red LED x2
- 100Ω Resistors x3
- Half Breadboard
- Crocodile Clips x4
- MicroUSB Cable
- AA Battery Holder
- AA Batteries x2
- M-M Wires x10
