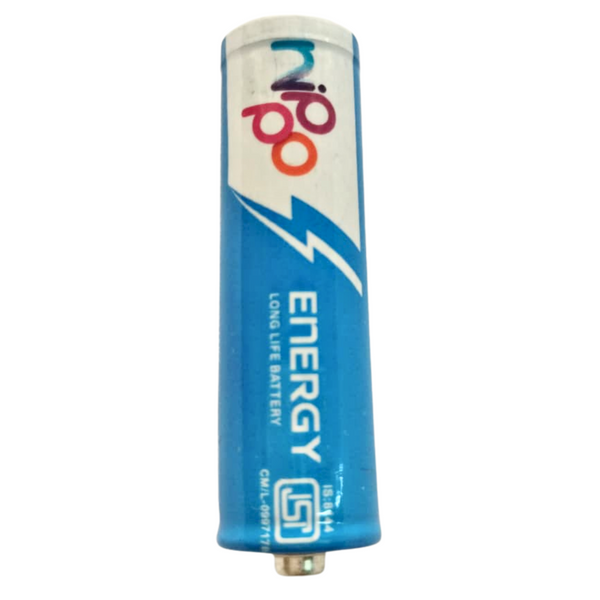

AA Battery 1.5V Alkaline Cell for Electronics & DIY Projects
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
AA 1.5V Alkaline Battery for Electronics & DIY Projects
This high-quality AA 1.5V alkaline battery provides reliable power for Arduino, ESP32, and Raspberry Pi electronics projects, ensuring stable 1.5V output for prototyping, robotics, and educational kits.
Key Specifications
| Voltage | 1.5V (nominal) |
| Chemistry | Alkaline (Zinc-Manganese Dioxide) |
| Typical Capacity | 2500 mAh (at 25mA discharge) |
| Shelf Life | 5 years (up to 80% capacity) |
| Diameter | 14.5 mm (±0.5 mm) |
| Length | 50.5 mm (±0.5 mm) |
| Weight | 23 g (approx.) |
| Brand | Compoden |
What You Can Build With This
- Arduino LED Blinker: Use a 6xAA battery holder (9 V on Vin) to power an Arduino Uno and learn basic digital I/O with a blinking LED.
- ESP32 BLE Beacon: Build a low‑energy Bluetooth beacon with an ESP32, a single AA battery, and a boost converter module.
- Raspberry Pi RTC Backup: Keep a Raspberry Pi 4 real‑time clock running during power loss with a single AA cell connected to the RTC module.
- CBSE Physics: Construct series and parallel battery configurations to measure combined voltage and current for practical lab work.
- Smart IoT Sensor Node: Design a battery‑powered environmental sensor using an ESP32 in deep sleep, LoRa radio, and one AA battery for a B.Tech final year project.
Compatibility
| Platform | Compatible | Connection | Library / Method |
|---|---|---|---|
| Arduino Uno R3 | Yes with condition | 6xAA pack (9 V) to Vin, or 5 V boost converter to 5V pin | N/A (power only) |
| Arduino Nano | Yes with condition | 6xAA pack (9 V) to Vin, or 5 V boost converter to 5V pin | N/A (power only) |
| Arduino Mega 2560 | Yes with condition | 6xAA pack (9 V) to Vin, or 5 V boost converter to 5V pin | N/A (power only) |
| ESP8266 NodeMCU | Yes with condition | Boost converter to 3.3V or 5V pin | N/A (power only) |
| ESP32 Dev Board | Yes with condition | Boost converter to 5V pin; or 2xAA in series to 3.3V pin (with caution) | N/A (power only) |
| Raspberry Pi Pico | Yes with condition | Boost converter to VSYS (1.8–5.5V) | N/A (power only) |
| Raspberry Pi 4 / 5 | Yes with condition | Boost converter to 5V GPIO or USB‑C power input | N/A (power only) |
Wiring and Interface Notes
Connect the positive terminal (raised nub) to your circuit’s VCC via a battery holder or snap connector, and the negative (flat end) to GND. Never short‑circuit the cell; always use a switch to disconnect when not in use. For voltages higher than 1.5V, wire multiple AA cells in series—four cells give about 6 V (less under load), which is too low for the Arduino Uno barrel jack/VIN and too high for its 5V pin; use 6 AA cells (9 V) on VIN or a 5 V boost converter on the 5V pin.
Frequently Asked Questions
Can I power an Arduino Uno directly with one AA battery?
No, a single AA provides only 1.5V while the Uno’s voltage regulator needs at least 7V on Vin or 5V on the USB port. Use six cells in series (9 V) on Vin or a 5 V boost converter on the 5V pin.
How long will this battery last in a low‑power IoT project?
Runtime depends on average current draw; a typical ESP32 weather station sleeping 99% of the time can last 3–6 weeks on a single AA cell.
