Arduino Nano Screw Terminal Breakout Board PCB

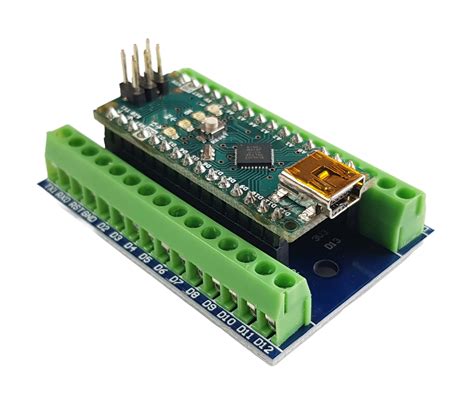

This breakout board adapts the 30-pin footprint of an Arduino Nano to robust screw terminals. Every digital, analog, power, and reset pin is brought out to a clearly labelled terminal block, eliminating the need to solder wires directly to the Nano’s headers. Use it to build more reliable, longer-lasting prototypes and permanent installations.

Key Specifications

Specification Value
Board Dimensions 70 mm × 55 mm × 1.6 mm
Terminal Pitch 5.08 mm
Number of Terminals 30 (15 per side)
Max Current per Terminal 8 A
Board Material FR4, 1 oz copper, HASL finish

What You Can Build With This

Compatibility

Accepts any standard Arduino Nano board (original, clone, Nano Every, Nano 33 IoT, Nano 33 BLE, and Nano 33 BLE Sense). The 2×15 female headers match the Nano’s pinout exactly. All pins appear in the same order as on the Nano, including 5V, 3.3V, GND, A0–A7, D0–D13, and RST. Works with 5 V and 3.3 V logic levels, depending on the Nano model installed. Common pairings include relay modules, motor drivers, and I²C/SPI sensors.

Wiring Notes

Insert the Nano into the female headers with the USB port facing outward. Tighten screw terminals onto stripped wire ends (16–26 AWG) until snug. Do not exceed 8 A per terminal, and keep total current draw within the Nano’s regulator limits. Reverse‑polarity on the Vin pin can damage the board; always double‑check connections before powering.

Is this compatible with Arduino Nano Every?

Yes, the Nano Every has the same 30‑pin layout and fits perfectly. All I/O pins, Vin, and resets are accessible via the screw terminals.

What wire gauge fits the terminals?

The screw terminals accept stranded or solid wire from 16 AWG to 26 AWG. Strip about 6 mm of insulation and twist strands firmly before clamping.

Does the board include the Nano or the screws?

No, this listing includes only the breakout PCB with pre‑soldered female headers and screw terminal blocks. The Arduino Nano itself is sold separately.
