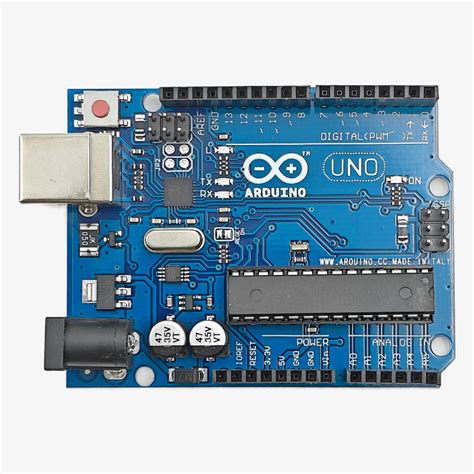

Uno R3 ATmega328P Compatible Development Board – DIP Package
The Uno R3 ATmega328P compatible development board is a microcontroller board based on the ATmega328P chip in a DIP package. It is fully compatible with the Arduino IDE and shields, making it ideal for prototyping and educational projects. With 14 digital I/O pins and 6 analog inputs, this board is a reliable choice for hobbyists and professionals alike.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller | ATmega328P |
| Operating Voltage | 5V |
| Digital I/O Pins | 14 (6 PWM) |
| Analog Input Pins | 6 |
| Clock Speed | 16 MHz |
What You Can Build With This
- LED blinking and fading projects
- Smart home automation system
- Weather station with sensors
- Line-following robot
Compatibility
This board works seamlessly with the Arduino IDE and a wide range of shields. It is compatible with most 5V sensors, modules, and actuators designed for Arduino. Common pairings include motor drivers, LCD displays, and Bluetooth modules.
Wiring Notes
Power the board via USB or a 7-12V DC adapter connected to the barrel jack or VIN pin. Ensure all connections are secure and avoid applying more than 5V to any I/O pin to prevent damage.
Is this compatible with Arduino Uno shields?
Yes, it has the same pinout and form factor, so all standard Arduino Uno shields will fit and function correctly.
Can I replace the ATmega328P chip if it gets damaged?
Yes, the DIP package allows easy replacement. Just remove the old chip and insert a new ATmega328P with the correct bootloader.
Does this board come with a USB cable?
No, a USB cable is not included. You will need a standard A-B USB cable for programming and power.
