MQ-2 Smoke Sensor Relay Trigger Kit: Arduino Uno
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
MQ-2 Smoke Sensor Relay Trigger Kit: Arduino Uno — a beginner-level kit. The gas sensor's heater runs hot, so don't touch it while powered.
MQ-2 Smoke Sensor Relay Trigger Kit: Arduino Uno
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
A learning project, not a certified gas, smoke, fire or CO alarm. Fit a certified alarm to protect people or property. Don't rely on it to detect a fire or a leak.
Kit at a glance
What you build: A smoke threshold trigger: an MQ-2 sensor reads smoke and combustible gas levels, and an Arduino Uno switches a relay and a red LED when the reading passes a level you set. Use the relay for a small fan or an indicator, and learn how sensor warm-up and thresholds work.
What's in the box

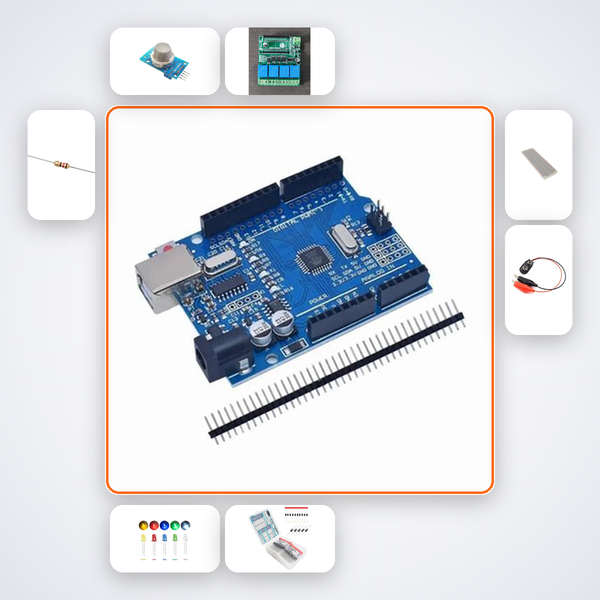

- Arduino Uno R3
- MQ-2 Gas Sensor
- 5V Relay Module
- 5mm Red LED × 2
- 1N4007 Diode × 5
- 10kΩ Resistors × 5
- 220Ω Resistors × 5
- 400-pt Breadboard
- M-M Wires × 15
- 9V Battery Snap
All parts arrive ready to plug together on a breadboard, no soldering required.
What You'll Build
A smoke threshold trigger: an MQ-2 sensor reads smoke and combustible gas levels, and an Arduino Uno switches a relay and a red LED when the reading passes a level you set. Use the relay for a small fan or an indicator, and learn how sensor warm-up and thresholds work.
What You'll Learn
- Interface an MQ‑2 sensor with Arduino and read analog gas concentration values
- Calibrate a smoke detection threshold using the sensor’s potentiometer and code
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| MQ-2 Gas Sensor | 1 |
| 5V Relay Module | 1 |
| 5mm Red LED | 2 |
| 1N4007 Diode | 5 |
| 10kΩ Resistors | 5 |
| 220Ω Resistors | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 15 |
| 9V Battery Snap | 1 |
Who This Kit Is For
The gas sensor's heater runs hot, so don't touch it while powered.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the AI companion from the QR code – it shows wiring diagrams, troubleshoots common mistakes, and highlights the exact component placement. If you still need help, our team responds over WhatsApp.
Can I use it as a smoke alarm?
No. Use a certified smoke or gas alarm.
How do I set the smoke level that triggers the relay?
You adjust the MQ‑2’s onboard potentiometer and fine‑tune the threshold value in the Arduino code. The AI companion walks you through calibrating the sensor near a tiny smoke source (like a matchstick) so the system reacts exactly when you want it to.
Why does it need to warm up?
The MQ-2 has a heater that must settle before readings mean anything.
