Kitchen Fire Alert Kit with Arduino Nano — Learn Fire Safety with a Working Suppression Model
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine a miniature kitchen where a hidden flame sensor constantly watches for heat — and the moment it detects fire, a water pump automatically sprays to put it out. This kit turns that life‑saving concept into a hands‑on electronics project. Designed for young makers, it’s a safe, educational way to understand how automatic fire suppression systems work.
What You'll Build
You’ll assemble a working model that uses a flame sensor to detect infrared light from a small flame (like a match or candle). As soon as the sensor triggers, the Arduino Nano activates a relay, which switches on a mini pump. Water is drawn from a container through a silicone tube and sprayed toward the flame — demonstrating a complete automated fire response. It’s a neat, low‑voltage system you can set up on any desk and run again and again.
What You'll Learn
- How a flame sensor picks up infrared radiation and sends a digital signal
- Using a relay module to safely control a high‑power device (the pump)
- Wiring a pump to a microcontroller output and managing water safely in a circuit
- Real‑world principles behind fire safety automation and sensor‑actuator logic

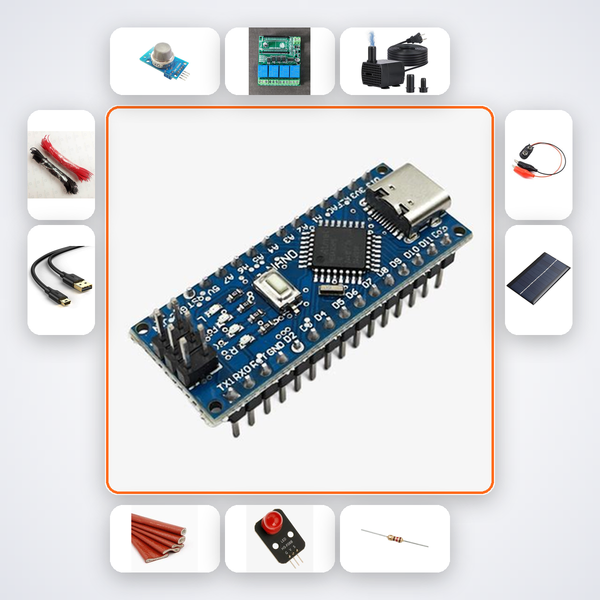

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 1 |
| Flame Sensor Module | 1 |
| 5V Relay Module | 1 |
| Mini Pump | 1 |
| Silicone Tube 30cm | 1 |
| LED Red | 2 |
| 220Ω Resistors | 3 |
| Half Breadboard | 1 |
| MiniUSB Cable | 1 |
| M-M Wires | 15 |
| Small Container | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Ideal for kids aged 10-12 who love building and tinkering. Perfect for CBSE school science exhibitions, ATL Tinkering Labs, and weekend STEM clubs. If you’re a young explorer curious about electronics and fire safety, this kit offers a guided first project that’s both fun and meaningful.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code inside the box for your AI companion, trained on this exact kit. You can also reach us on WhatsApp for human support.
Is this kit safe for a 10-year-old to build independently?
All components run on low‑voltage USB power. Adult supervision is recommended for handling water and the small flame source during testing.
Can I actually extinguish a small flame with this kit?
The mini pump can spray water a short distance, perfectly demonstrating the concept of automatic fire suppression. It’s designed for educational demos, not large fires.
Do I need any extra tools?
No soldering required. Everything connects via breadboard and jumper wires. You’ll need a laptop with Arduino IDE to upload the code.
Kitchen Fire — Flame sensor triggers relay that runs a mini pump spraying water — fire detection and suppression demonstration.
