Light Curtain Safety Gate Kit with Arduino Uno + LED

SKU: CDN-KIT-0444-CL Brand: Compoden Category: Electronics > Security & Surveillance > Project Kits
Rs. 650.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Light Curtain Safety Gate Kit with Arduino Uno + LED — a beginner-level kit.

Light Curtain Safety Gate Kit with Arduino Uno – Build an IR Beam Alarm That Halts When Any Beam Breaks

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Array logic

From factory floors to home alarm systems, light curtains use invisible infrared beams to create a protective barrier. This kit turns that industrial concept into a working 3-beam sensor array with a real Arduino Uno at its heart. The moment anyone or anything breaks even one beam, the system triggers a stop signal — giving you a hands-on lesson in security sensing and array logic.

What You'll Build

You'll assemble a breadboard-based light curtain with three IR LED–photodiode pairs aligned as a detection zone. When all beams are unbroken, a status LED stays lit. Interrupt any single beam and the alarm LED turns off instantly, registering a breach just like the safety gates on CNC machines and automated doors. By the end, you'll have a working sensor barrier you can demonstrate and extend.

What You'll Learn

  • Calibrating IR LED and photodiode pairs for consistent detection distance across all three channels
  • Reading analog photodiode signals and setting thresholds with the LM393 comparator to reject ambient light
  • Writing Arduino code that polls multiple digital inputs simultaneously and applies array logic to trigger a system-wide response
  • Debugging beam alignment and false triggers with the serial monitor, building real embedded systems troubleshooting skills

Kit Contents

Component Quantity

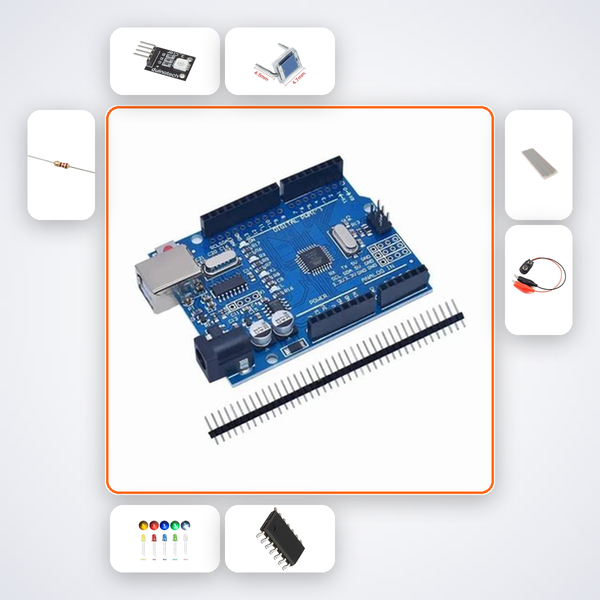

Arduino Uno R3 1
IR LED 3
IR Photodiode 3
5mm Red LED 3
LM393 Comparator 1
10kΩ Resistors 10
220Ω Resistors 5
400-pt Breadboard 1
M-M Wires 25
9V Battery Snap 1

Who This Kit Is For

This kit is ideal for school students (CBSE) exploring sensor-based electronics, ATL Tinkering Lab participants building safety systems, and makers in STEM clubs who want a guided project that goes beyond blinking LEDs. It’s also a perfect starter for B.Tech ECE first‑years who need to understand comparator circuits and array logic with hands-on practice — a proven way to stand out in hackathons like Smart India Hackathon.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Open the QR code on the box and our AI companion walks you through every step — if you still need help, reach us on WhatsApp and we’ll reply.

Will ambient light or sunlight affect the IR beams?

The LM393 comparator includes adjustable sensitivity so you can threshold out ambient light. The kit guide shows how to tune the reference voltage for indoor or curtained lighting, and you can add simple tubes for outdoor experiments.

Can I add more beams to make a taller curtain?

Absolutely. The Arduino Uno has enough digital and analog pins to handle up to 6 sensors, and the array logic code is structured so you can easily expand the number of channels by just adding more pairs and updating the array size.

What is array logic and why does this project teach it?

Array logic is a programming technique where you use a single variable (an array) to store the state of multiple sensors and then run a single loop to check if any sensor has changed. This kit uses that pattern to monitor three beams at once, so you learn to scale code instead of duplicating it — a skill vital for larger embedded systems.

Three IR beam pairs form a light curtain that triggers stop when any beam is broken. Teaches array logic.
