Microplastics Optical Particle Counter Kit with Arduino Mega + LED — an advanced-level kit.

Microplastics Optical Particle Counter Kit with Arduino Mega — Count and Size Pollutants in Water

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 6-8 hrs Skill: Laser Spectroscopy & Signal Processing

Detect and size microplastic particles smaller than 100 µm using a custom-built flow cell, laser, and photodiode. This advanced kit guides you through building an optical particle counter that measures light scattering events and analyzes pulse width to discriminate particle size — a critical tool for environmental monitoring and research.

What You'll Build

You’ll construct a laser-based particle counter with a continuous flow sample cell. As water passes through, suspended microplastics scatter the laser beam; a BPW34 photodiode picks up these pulses, which dual LM358 op-amps amplify and shape. An Arduino Mega 2560 timestamps each event via DS3231 RTC, logs counts and size categories to microSD, and displays real-time data on a 0.96-inch OLED. This standalone instrument lets you quantify microplastic pollution in real water samples from rivers, lakes, or processed wastewater.

What You'll Learn

  • Design and calibrate a flow-based optical particle counting system
  • Process weak analog signals with multi-stage op-amp circuits (pulse detection and amplification)
  • Perform pulse width analysis to classify particles into size bins (e.g., 50–100 µm, 100–500 µm)
  • Implement data logging with real-time clock timestamps for long-duration sampling studies

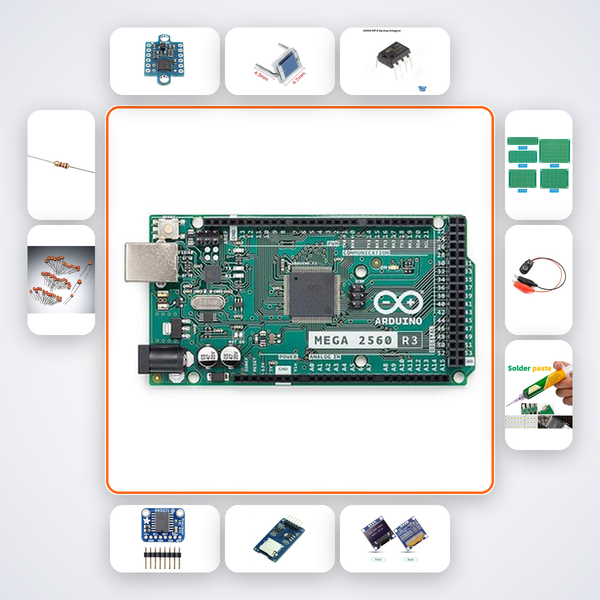

Kit Contents

Component Quantity
Arduino Mega 2560 1
5mW Laser Module 1
BPW34 Photodiode 1
LM358 Op-Amp 2
DS3231 RTC 1
MicroSD Module 1
0.96in OLED 1
100kΩ Resistors 5
10kΩ Resistors 10
100nF Caps 10
PCB Prototype Board 3
9V Battery Snap 1
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

This kit is designed for B.Tech ECE/EEE students working on final-year projects in environmental sensing, participants in Smart India Hackathon tackling water pollution challenges, and research scholars at IITs, NITs, VIT, or BITS looking to prototype low-cost microplastics monitoring. It assumes prior experience with Arduino and basic analog electronics.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code on the box to access the AI build companion trained on this exact kit; it can walk you through every step and troubleshoot. You can also reach us via WhatsApp for human support.

Can this kit detect nanoparticles like nanoplastics?

No, the optical design using a 5mW laser and BPW34 photodiode is sensitive to particles roughly 50 µm and larger, ideal for microplastics. For nanoplastics, you would need dynamic light scattering or a different approach.

Do I need a flow pump and cuvette?

The kit includes prototype PCBs and laser/photodiode to build the core sensor head, but you’ll need to construct a simple gravity-fed flow cell from materials like a glass cuvette and tubing (sources suggested in the guide). A small peristaltic pump can be added for continuous sampling.

What water samples can I test?

The system works with clear to slightly turbid water. Filtered tap water, bottled water, or environmental samples after basic filtration work best. Highly turbid water may require pre-filtration to avoid clogging and false counts.

Laser + photodiode in flow cell counts particles in water. Size discrimination by pulse width analysis.

What's in this kit

Choose your assembly option:

  • Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
  • Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
