Pet GPS Collar Tracker Pro Kit with Arduino Nano + LoRa
Build a Pet GPS Collar Tracker with LoRa RSSI Heatmap Mapping – Arduino Nano Pro Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
A pet goes missing, and you drive around the neighbourhood with a laptop receiving LoRa signals from the collar. Every GPS-tagged RSSI data point logs to a microSD card, and you later process the CSV into a heatmap that pinpoints the pet’s last known location. This isn’t just a tracker — it’s a field-deployable signal mapping system that turns raw radio strength into visual clues.
What You'll Build
You’ll assemble a waterproof GPS-LoRa collar that transmits coordinates and RSSI values to a moving base station (a laptop in a car). After a drive, a Python script processes the logged CSV file and generates a heatmap showing signal strength distribution, revealing the collar’s position even when GPS data is intermittent. The system can be adapted for livestock monitoring or search-and-rescue drills.
What You'll Learn
- Integrate GPS, LoRa, RTC, and microSD storage on an Arduino Nano platform
- Implement RSSI measurement from LoRa packets and timestamped CSV logging
- Solder components onto prototype PCBs and place them inside a durable waterproof enclosure
- Generate a geographic heatmap from GPS points and RSSI data using a Python script

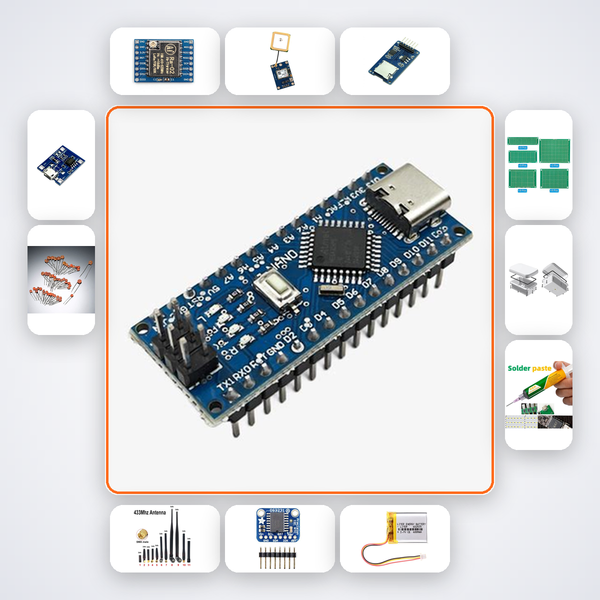

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 1 |
| RA-02 LoRa | 1 |
| NEO-6M GPS | 1 |
| MicroSD Module | 1 |
| 433MHz Antenna | 1 |
| DS3231 RTC | 1 |
| 3.7V LiPo 2000mAh | 1 |
| TP4056 Module | 1 |
| 100nF Caps | 5 |
| PCB Prototype Board | 2 |
| Waterproof Enclosure | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Final-year B.Tech ECE or EEE students building a communication and IoT major project for internal evaluation or Smart India Hackathon, and advanced hobbyists from IITs, NITs, VIT, or BITS Pilani who want to move beyond breadboard prototypes. If you’ve already worked with Arduino and basic sensors, this kit pushes you into field-deployable wireless data logging.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code in the box to launch the AI companion pre-loaded with wiring diagrams, Arduino code, and troubleshooting for this exact kit. If you still need help, our WhatsApp support can review your setup.
Can this kit track a pet in real time?
No, the collar transmits LoRa pings, and the base station logs RSSI values with GPS timestamps. The heatmap is generated post-drive from the CSV file, which mimics how professional signal mapping is done.
Do I need an extra laptop for the base station?
Yes, you supply your own laptop or single-board computer to run the serial data logger and heatmap script. The kit focuses on the collar hardware and includes the CSV processing script as a download.
Is the enclosure safe and comfortable for a dog?
The included waterproof enclosure is lightweight (under 120 g fully loaded) and has no sharp edges. It attaches to a standard collar with zip ties — suitable for medium or large dogs for short tracking sessions.
Pet — GPS-tagged LoRa RSSI measurements logged as a vehicle drives around an area. Heatmap generated from CSV.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
