Real-Time Structural Health Monitoring with the Raspberry Pi 5 IoT Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Imagine a bridge, high-rise, or civil structure that talks to you about its health. This kit lets you deploy four MEMS accelerometer nodes at strategic points, stream vibration data in real time, and run modal analysis on a Raspberry Pi 5 — pinpointing structural anomalies long before they become hazards. Perfect for B.Tech civil, ECE, and instrumentation projects, the Smart India Hackathon, or ATL tinkering labs exploring real-world IoT monitoring.

What You'll Build

You'll assemble four ADXL355 accelerometer nodes on ESP32, wire them to a central Raspberry Pi 5 running an M.2 NVMe SSD for high-speed data logging. The system continuously captures vibration signatures and performs Fast Fourier Transform (FFT) to extract natural frequencies. When structural stiffness changes, the software flags it — providing an early-warning dashboard you can view on any device.

What You'll Learn

• Configuring MEMS accelerometers (ADXL355) with SPI and I2C on ESP32.
• Real-time data streaming over WiFi using MQTT protocol.
• Modal analysis: FFT, natural frequency extraction, and structural damping estimation.
• Setting up a Pi 5 with NVMe SSD for high-throughput sensor data logging.

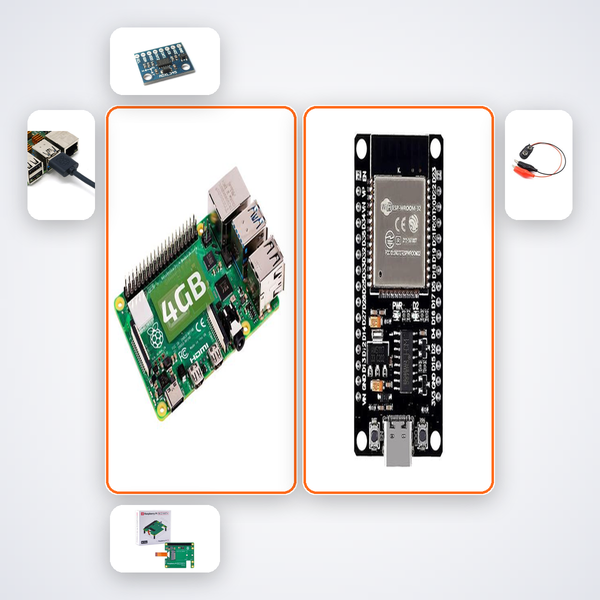

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

If you are a B.Tech civil, ECE, or instrumentation student preparing your final-year project or Smart India Hackathon prototype, this kit accelerates you past parts scavenging. ATL tinkering labs and CBSE Class 11-12 students with basic Python can use the guided AI companion to deploy structural health monitoring on actual scale models. IIT/NIT/VIT/BITS research scholars gain a ready-to-instrument platform for vibration-based damage detection studies.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
