Precision Cattle Grazing Tracker Kit with Arduino Nano + LoRa
Precision Cattle Grazing Tracker Kit with Arduino Nano + LoRa: Build a Real-Time Herd Monitoring System
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Build four GPS collar tags and a LoRa gateway to track cattle grazing patterns across open fields. Transmitting location every five minutes, the system maps herd movement in real time on a custom web dashboard—no cellular coverage required. This kit equips farmers and agritech researchers with a scalable tool for precision grazing management.
What You'll Build
You'll assemble four ruggedized collar units with GPS and LoRa, a central gateway that receives positions via 433MHz, and a browser-based dashboard that plots each animal's path. The system runs on 18650 batteries with buck converters for stable 5V power, and waterproof enclosures protect electronics from weather and animal interaction.
What You'll Learn
- Assemble and program Arduino Nano-based GPS/LoRa collar nodes
- Configure RA-02 LoRa modules for long-range 433MHz peer-to-peer communication
- Integrate NEO-6M GPS receivers to capture latitude/longitude at configurable intervals
- Design a multi-node network with gateway data acquisition and serial-to-web visualization

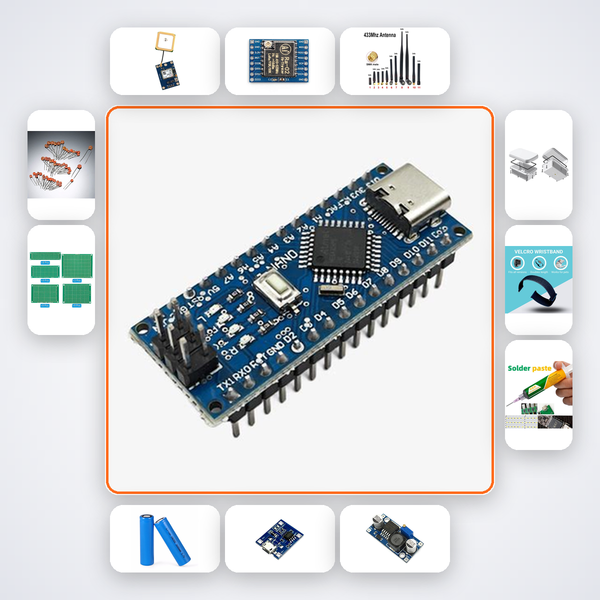

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 4 |
| NEO-6M GPS | 4 |
| RA-02 LoRa | 5 |
| 433MHz Antenna | 5 |
| 18650 Cell | 4 |
| TP4056 Module | 4 |
| LM2596 Buck Converter | 4 |
| 100nF Caps | 20 |
| PCB Prototype Board | 5 |
| Waterproof Enclosures | 4 |
| Velcro Collar | 4 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Engineers and researchers developing precision livestock solutions will find this kit ideal for prototyping. B.Tech ECE/EEE students can deploy it in IoT agriculture projects, while Smart India Hackathon teams tackling rural challenges gain a ready-to-extend platform. ATL Tinkering Labs and institutional researchers at IIT/NIT/VIT/BITS will value its field-ready design.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box for the AI build companion tuned to this kit; it walks through every connection and code upload. For hands-on help, our team responds over WhatsApp within hours.
How does the LoRa gateway send data to a laptop without WiFi?
The gateway’s Arduino Nano receives LoRa packets via the RA-02 module and forwards them over USB serial to a laptop. A Python script reads the serial stream and updates the web dashboard in real time—no WiFi or cloud dependency.
What range can I expect in open grazing fields?
With the included 433MHz antennas optimally placed, the RA-02 modules achieve 2–5 km line-of-sight. Dense vegetation or terrain will reduce range; the extra fifth antenna lets you experiment with placement for best coverage.
Can the collars handle rain and dust?
Yes, each collar unit is secured inside a waterproof enclosure with a grommet-sealed antenna exit. The Velcro collars hold the enclosure firmly without harming the animal, keeping electronics safe from weather and movement.
GPS collar tag with RA-02 LoRa transmits location every 5 minutes. Gateway maps herd movement on web dashboard.
What's in this kit
- Arduino Nano x4
- NEO-6M GPS x4
- RA-02 LoRa x5
- 433MHz Antenna x5
- 18650 Cell x4
- TP4056 Module x4
- LM2596 Buck Converter x4
- 100nF Caps x20
- PCB Prototype Board x5
- Waterproof Enclosures x4
- Velcro Collar x4
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
