Arduino Sound Reactive LED Visualiser Kit – Build a 20-LED Audio Visualizer That Bounces to Music

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

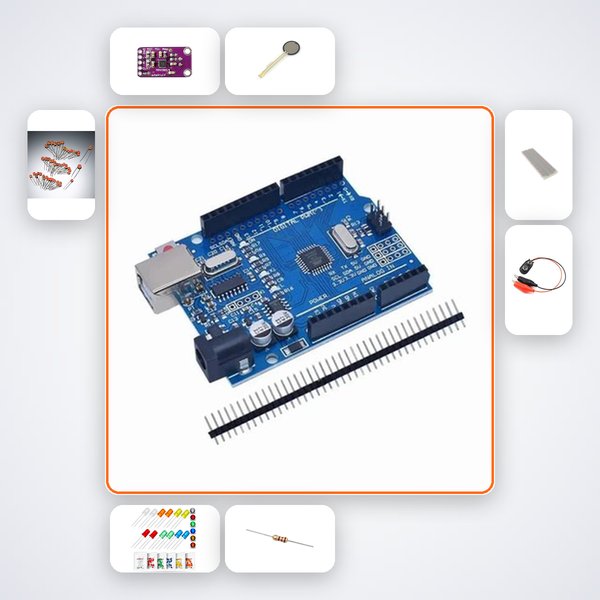

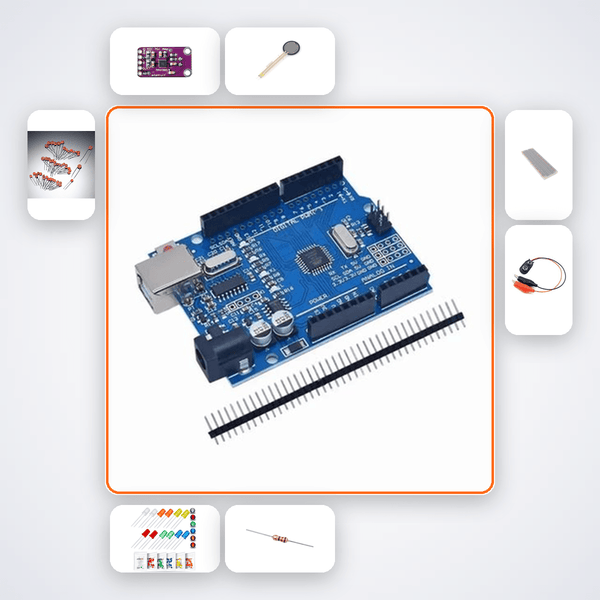

Imagine a bar of 20 LEDs that springs to life with every beat, drum drop, and vocal note from your favourite tracks. This kit turns that imagination into a working, real-time audio visualizer using an Arduino Uno and a high-sensitivity MAX9814 microphone amplifier. Once assembled, the LED bar doesn’t just blink—it tracks the music’s amplitude, creating a bouncing light effect that mirrors exactly what the mic hears. It’s a genuine audio spectrum display you can build in a single afternoon, perfect for a school science exhibit, a room decoration, or just the thrill of making sound visible.

What You'll Build

You’ll wire up a compact circuit that captures ambient sound, amplifies it to usable levels, and drives two daisy-chained 74HC595 shift registers to animate 20 LEDs in a dynamic bar graph. The result is a responsive light strip that jumps, sweeps, and pulses in synchronisation with any music playing nearby—no special audio input needed, just the room’s own soundscape.

What You'll Learn

• Reading and conditioning analog signals from a microphone preamp module
• Using shift registers to expand Arduino output pins and control many LEDs simultaneously
• Writing real-time audio reactivity algorithms that map sound level to LED patterns
• Debugging timing and noise issues in mixed-signal (analog + digital) circuits

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This intermediate-level visualizer is made for CBSE Class 11–12 students blending physics with music, B.Tech ECE/EEE learners who need a working mini project for semester submissions, and Smart India Hackathon participants prototyping audio-reactive hardware. ATL Tinkering Labs and makers in IIT/NIT/VIT/BITS will also find it a fast way to explore signal processing and large-scale LED control.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
