Tendon Network Anthropomorphic Wrist
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Tendon Network Anthropomorphic Wrist — an expert-level kit for adults.
4DOF Tendon-Driven Anthropomorphic Wrist: Arduino Mega Robotics Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 1-5 days.
Imagine a robotic hand that can flex, extend, rotate, and deviate just like a human wrist — that’s what you’ll build with this kit. The 4DOF tendon network gives you precise control over four degrees of motion, making it ideal for advanced humanoid robotics, prosthetic research, and complex manipulation tasks.
What You'll Build
A fully articulating wrist joint with onboard force and position sensing, all controlled by Arduino Mega. You'll have a test rig that demonstrates biomimetic motion, ready to integrate into a larger robotic arm or hand project.
What You'll Learn
- Design and implement a tendon-driven actuation system with antagonistic pairs.
- Interface multiple sensors—force-sensitive resistors and magnetic encoders—for real-time feedback.
- Program a PCA9685 driver to coordinate four MG90S servos with sub-degree precision.
- Calibrate and map sensor data to achieve smooth, lifelike wrist movements.
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| PCA9685 Driver | 1 |
| MG90S Servo | 4 |
| FSR 402 | 4 |
| AS5600 Encoder | 2 |
| 5V 3A PSU | 1 |
| 100nF Caps | 10 |
| 4.7kΩ Resistors | 5 |
| PCB Prototype Board | 3 |
| Fishing Line 0.3mm 10m | 1 |
| 3D Printed Wrist Frame | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
4DOF wrist with 8 tendons driven by 4 servos achieves flexion, extension, radial and ulnar deviation.

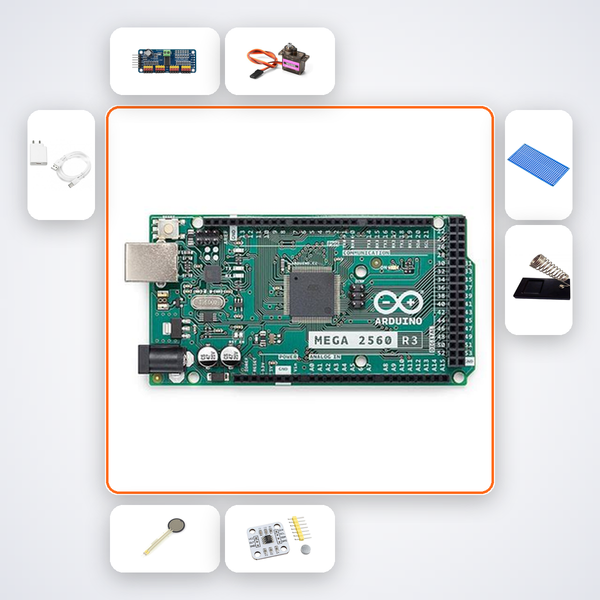

What's in this kit
- Arduino Mega 2560
- PCA9685 Driver
- MG90S Servo x4
- FSR 402 x4
- AS5600 Encoder x2
- 5V 3A PSU
- 100nF Caps x10
- 4.7kΩ Resistors x5
- PCB Prototype Board x3
- Fishing Line 0.3mm 10m
- 3D Printed Wrist Frame
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
