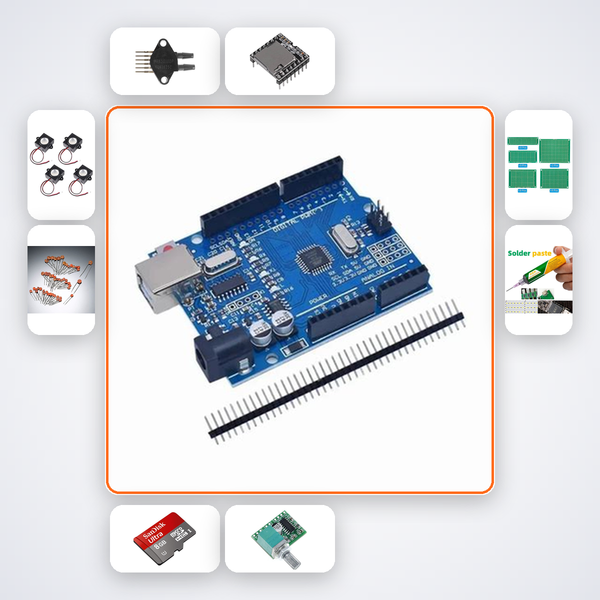

Wind Instrument Breath Pressure Synth Kit — Build a Breath-Controlled Digital Wind Instrument with Arduino Uno

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

This kit turns your breath into a synthesizer. Blow into the MPX5010 pressure sensor and the Arduino Uno translates every nuance — soft puff, steady stream, sharp blast — into pitch shifts and volume sweeps on a DFPlayer Mini that streams WAV samples stored on a microSD card. The sound passes through a 3W amplifier and speaker, creating a fully playable electronic wind instrument. Whether you want to perform flute melodies, design an experimental sound controller, or submit a unique music-tech project, this breath pressure synth variant gives you a real, expressive instrument that reacts like an acoustic wind but with digital depth.

What You'll Build

A self-contained breath-controlled synthesizer that you can hold and play like a wind instrument. You will solder the circuit on a prototype board, load the microSD with flute, saxophone, or synth samples, and then perform with nothing but your breath. The system transduces analog pressure into continuous volume and pitch data — the harder you blow, the louder and higher the note, just like a real instrument. The onboard amp and speaker let you play anywhere, and the 3.5mm line-out on the PAM8403 lets you connect to a larger sound system for stage or studio use.

What You'll Learn

• Integrating an MPX5010 differential pressure sensor with Arduino to capture real-time breath intensity
• Interfacing the DFPlayer Mini module and decoding WAV files from a microSD card for low-latency sample playback
• Mapping analog sensor readings to MIDI-like pitch and volume curves for dynamic musical expression
• Designing and soldering an audio amplifier circuit with the PAM8403, speaker, and filtering capacitors

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is designed for advanced electronics and audio engineering students — B.Tech ECE/EEE final years at IIT, NIT, VIT, or BITS Pilani who need a standout capstone project, or participants in the Smart India Hackathon tackling music-tech challenges. It’s also ideal for ATL lab mentors and hobbyist musicians who want to build a custom wind controller without starting from scratch. If you have soldering experience and a working knowledge of the Arduino IDE, this project will stretch your sensor integration and audio design skills in exactly the right ways.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
