Two-Tone Beat Frequency Generator Kit: ESP32 + DAC

SKU: CDN-KIT-0363-SLD Brand: Compoden Category: Electronics > Audio & Music > Project Kits
Rs. 2,000.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Two-Tone Beat Frequency Generator Kit: ESP32 + DAC — an advanced-level kit.

Two-Tone Beat Frequency Generator Kit: ESP32 + DAC

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 5-6 hours Skill: Audio DAC & Binaural Beat Programming

This is a learning project, not a medical device. Don't use it to diagnose, treat or monitor any health condition.

Kit at a glance

What you build: A beat-frequency generator: an ESP32 and an MCP4728 DAC play two slightly different tones through two speakers, and you hear them pulse at the difference between them. A rotary encoder sets the tones and a session timer, shown on a 0.96-inch OLED. It's a hands-on way to learn wave interference.

What's in the box

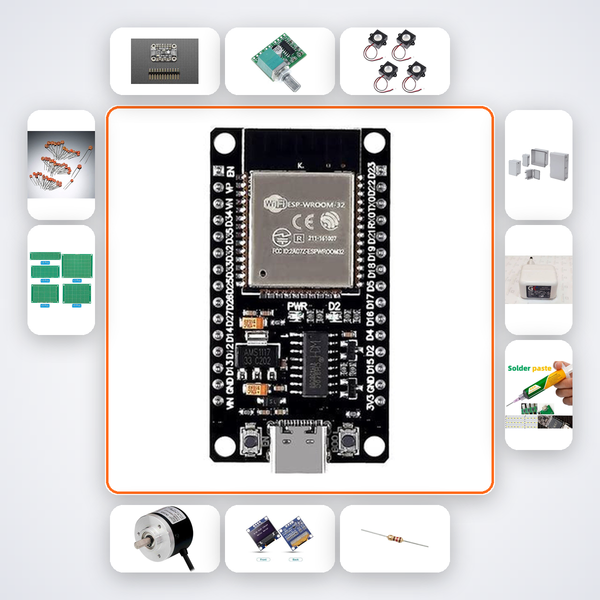

  • ESP32 Dev Board
  • MCP4728 Quad DAC
  • PAM8403 Stereo Amp
  • 3W 8Ω Speaker × 2
  • Rotary Encoder
  • 0.96in OLED
  • 10kΩ Resistors × 5
  • 100nF Caps × 10
  • PCB Prototype Board × 2
  • Enclosure Box
  • 5V 2A PSU
  • Soldering Iron
  • Solder Wire

The ESP32 pumps I2S signals to a quad-channel MCP4728 converter, while a rotary encoder and OLED let you dial in session length and volume before the beat starts pulsing.

What You'll Build

A beat-frequency generator: an ESP32 and an MCP4728 DAC play two slightly different tones through two speakers, and you hear them pulse at the difference between them. A rotary encoder sets the tones and a session timer, shown on a 0.96-inch OLED. It's a hands-on way to learn wave interference.

What You'll Learn

  • Program the ESP32’s I2S peripheral to feed stereo audio data to the MCP4728 quad DAC
  • Generate precise frequency pairs (e.g., 440 Hz left, 480 Hz right) for a rock-solid 40 Hz binaural beat
  • Integrate a rotary encoder and 0.96-inch OLED to build a countdown timer with real-time user input
  • Amplify the DAC output with a PAM8403 stereo amp and match impedance to 3W 8Ω speakers

Kit Contents

Component Quantity
ESP32 Dev Board 1
MCP4728 Quad DAC 1
PAM8403 Stereo Amp 1
3W 8Ω Speaker 2
Rotary Encoder 1
0.96in OLED 1
10kΩ Resistors 5
100nF Caps 10
PCB Prototype Board 2
Enclosure Box 1
5V 2A PSU 1
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

CBSE students pursuing investigatory projects in applied physics or biotech will find the build process and documentation ready to cite.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

The AI companion covers wiring, code upload, and calibration. If that doesn’t resolve it, message us on WhatsApp — our team has built this kit dozens of times and responds.

What are beats?

When two tones are close in pitch, their waves add and cancel in turn, making a slow pulse you can hear.

Do I need an oscilloscope to verify the output?

No. You can test the beat perceptually with headphones or confirm the separate frequencies using a multimeter with frequency mode on the DAC outputs. The code guarantees a 40 Hz difference.

Is soldering absolutely required?

Yes. All components mount on the prototype board, and you’ll need to solder the DAC, amp, encoder, and OLED pins. This is an advanced kit, and soldering is a core part of the skill-building.

Is this a therapy device?

No. It is an audio physics learning project.
