4-Band Graphic Equaliser Kit with Arduino Due + LED

SKU: CDN-KIT-0370-CL-SLD Brand: Compoden Category: Electronics > Audio & Music > Project Kits
Rs. 3,630.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

4-Band Graphic Equaliser Kit with Arduino Due + LED — an advanced-level kit.

Build a Professional 4-Band Graphic Equaliser with Arduino Due & OLED

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 6-8 hrs Skill: Real-Time DSP & FIR Filter Design

Transform raw audio into a sculpted soundscape with a true FIR-based 4-band graphic equaliser you build yourself. This kit puts you inside a 32‑bit ARM Cortex‑M3 audio processor, using the Arduino Due to apply precise band-pass filters at 80 Hz, 500 Hz, 3 kHz, and 12 kHz. Four potentiometers become your tactile faders, while an OLED screen visualises the live spectrum and gain levels. Ideal for engineering lab demos, hackathon prototypes, or mastering the art of embedded digital signal processing.

What You'll Build

A standalone graphic equaliser that captures sound through a MEMS microphone, runs custom FIR filter code on the Arduino Due, and drives a 3 W speaker via a PAM8403 amplifier. The MCP4728 quad DAC converts each filtered band to an analog mix, whose gain you tweak in real time using the four 10kΩ potentiometers. A bright 0.96‑inch OLED displays per‑band levels, and everything fits neatly inside the included enclosure, ready for your desk or lab bench.

What You'll Learn

  • Real‑time FIR filter implementation on the Arduino Due’s SAM3X8E ARM core
  • I²C DAC communication using the MCP4728 to generate four independent analog outputs
  • Complete audio signal chain design: mic preamp, digital filtering, DAC reconstruction, power amplification
  • Embedded UI development with an OLED display and analog rotary controls for live parameter adjustment

Kit Contents

Component Quantity
Arduino Due 1
MCP4728 DAC 1
PAM8403 Amp 1
MAX9814 Mic 1
10kΩ Potentiometer 4
0.96in OLED 1
100nF Caps 15
PCB Prototype Board 2
Enclosure Box 1
9V 1A PSU 1
Soldering Iron 1
Solder Wire 1

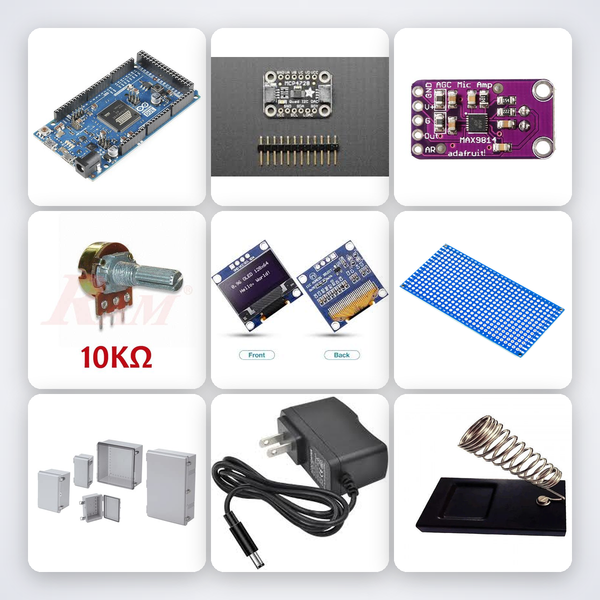

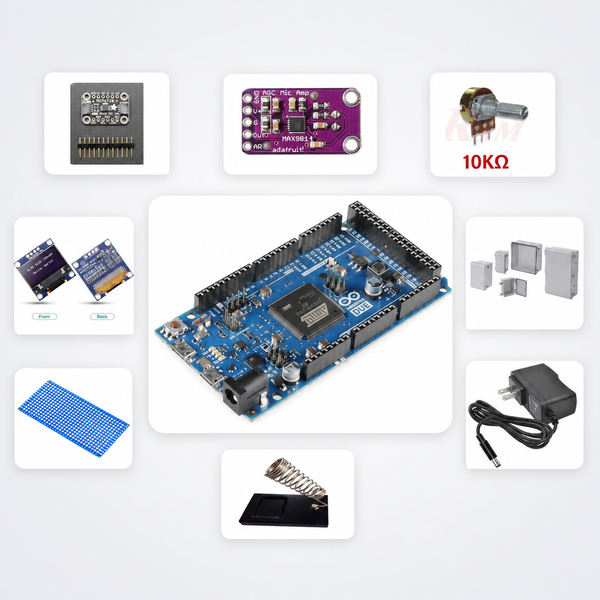

Arduino Due applies FIR band filters at 80Hz 500Hz 3kHz 12kHz via MCP4728 DAC output. Potentiometer gain control.

What's in this kit

Choose your assembly option:

  • Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
  • Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.

Shipping Information

  • Prepaid Orders: ₹45 for orders up to ₹1,999, FREE shipping above ₹1,999
  • COD Orders: ₹45 shipping for orders up to ₹1,999, FREE shipping above ₹1,999. COD available.
  • Delivery Timeline: Dispatch in 3-7 days, delivery in 2-7 days depending on location

Returns & Warranty

  • 7-Day Return: Manufacturing defects only (approval required)
  • Warranty: 7 days from delivery
  • Non-Returnable: Batteries, consumables, cut wires, clearance items
