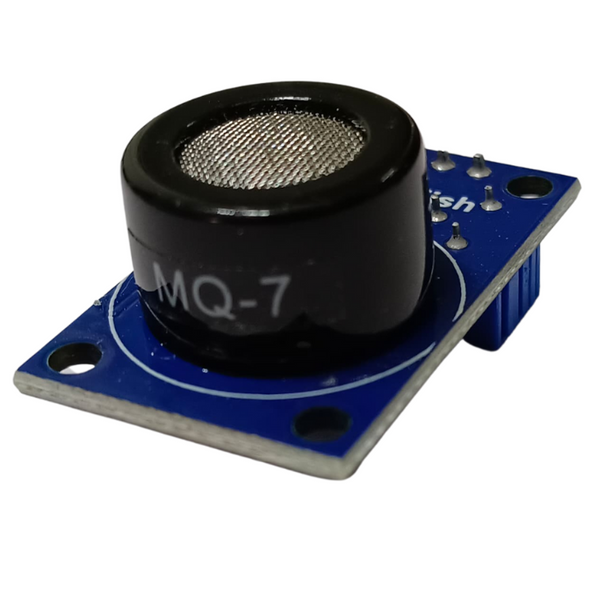

MQ-7 Carbon Monoxide Gas Sensor Module for Arduino & ESP32
Rs. 170.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai
Ask about this product
MQ-7 Carbon Monoxide Gas Sensor Module (5V Analog)
The MQ-7 gas sensor module detects 20-200 ppm carbon monoxide via analog output, ideal for air quality monitors and safety alarms with Arduino, ESP32, or Raspberry Pi.
Key Specifications
| Detection Gas | Carbon Monoxide (CO) |
|---|---|
| Detection Range | 20 – 200 ppm |
| Operating Voltage | 5 V DC |
| Heater Voltage | 5 V (high) / 1.4 V (low) cyclic |
| Preheat Time | 24 – 48 hours for full stability |
| Response Time | < 10 s |
| Output Type | Analog 0–5 V (proportional to concentration) |
What You Can Build With This
- Simple CO Alert Indicator: Use an Arduino Uno to light green, yellow, or red LEDs and sound a buzzer based on CO levels.
- Wi‑Fi CO Monitor: Connect to ESP8266 and send real‑time readings and Telegram alerts when thresholds are breached.
- Raspberry Pi Air Station: Build an MQTT‑based home dashboard with logging, fan control, and email alerts using an MCP3008 ADC.
- Pollution Science Model: Make a portable CO detector with a transistor driver and alarm for CBSE Class 12 physics or ATL Tinkering Lab.
- Smart Vehicle Cabin Safety: Develop an IoT‑enabled CO monitor for driver safety as a B.Tech final‑year project or Smart India Hackathon solution.
Compatibility
| Platform | Compatible | Connection | Library / Method |
|---|---|---|---|
| Arduino Uno R3 | Yes | Analog pin A0 | analogRead(A0) |
| Arduino Nano | Yes | Analog pin A0 | analogRead(A0) |
| Arduino Mega 2560 | Yes | Any analog pin (A0–A15) | analogRead(pin) |
| ESP8266 NodeMCU | Yes with condition | Pin A0 (via 5V to 1V voltage divider) | analogRead(A0) |
| ESP32 Dev Board | Yes with condition | Any ADC1 pin (e.g., GPIO34) with level shifter | analogRead(pin) |
| Raspberry Pi Pico | Yes with condition | ADC0 (GP26) with 3.3 V level shifter | machine.ADC(26) in MicroPython |
| Raspberry Pi 4 / 5 | Yes with condition | Via MCP3008 ADC on SPI (CE0, MOSI, MISO, SCLK) | spidev library in Python |
Wiring and Interface Notes
Connect VCC to 5 V and GND to ground; the analog output (AO) goes to your microcontroller’s ADC pin. For 3.3 V boards like ESP32 or Pico, use a pair of resistors (e.g., 10kΩ + 20kΩ) as a voltage divider to bring 5 V down to 3.3 V. Let the sensor preheat for at least 24 hours before taking measurements for stable baseline values.
Frequently Asked Questions
Why does the sensor need 24‑48 hours of preheating?
The MQ-7’s tin‑dioxide sensing layer must reach chemical equilibrium in clean air; this long burn‑in ensures accurate, drift‑free carbon monoxide readings.
Can I use the MQ-7 to detect methane or LPG?
This sensor is optimised for CO; it has limited cross‑sensitivity. For methane or LPG, choose an MQ-4 or MQ-5 sensor instead.
