Campus Air Pollution Mapping Robot Kit with Arduino Uno + MQ135 Gas Sensor

SKU: CDN-KIT-4353 Brand: Compoden Category: Electronics > Lab Classroom Kits > Project Kits
Rs. 2,870.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Campus Air Pollution Mapping Robot Kit with Arduino Uno + MQ135 Gas Sensor — a beginner-level kit.

A learning project, not a certified air-quality instrument.

Arduino Campus Air Pollution Mapping Robot Kit with Arduino Uno + MQ135 Gas Sensor — Map Pollution Across Your School Campus

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 3-4 hrs Skill: Sensor integration and GPS-based environmental monitoring

Turn a simple 2WD buggy into a roving air quality sniffer that cruises your school grounds, detecting harmful gases and stamping each reading with exact GPS coordinates. This Arduino-powered kit lets you create a real-time pollution map — the kind that environmental science projects and smart-city prototypes depend on.

What You'll Build

A self-driving vehicle that measures pollution levels as it moves, logging MQ135 sensor data alongside location stamps from a NEO-6M GPS module. In a single afternoon you’ll go from a pile of components to a working rolling monitor — ready for a classroom demo, a science exhibition, or a whole-campus air audit.

What You'll Learn

  • Wiring and calibrating an MQ135 gas sensor for accurate air quality readings
  • Connecting a NEO-6M GPS module to capture precise latitude and longitude
  • Programming an Arduino Uno to read sensors and command a motor driver
  • Building a mobile data logger to map pollution values across a physical space

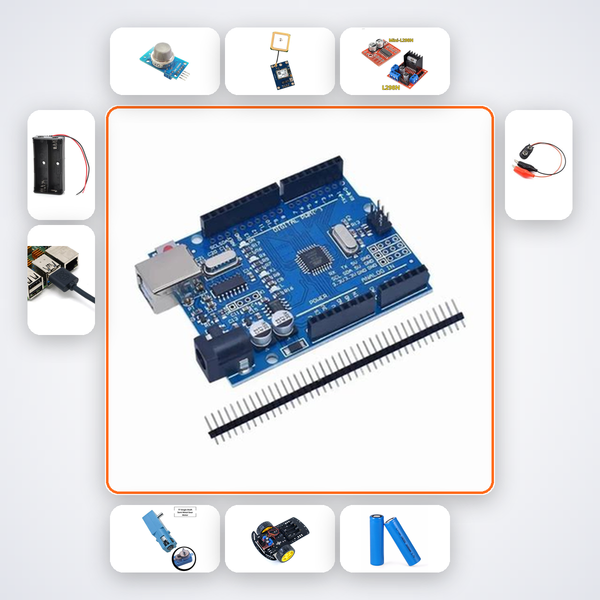

Kit Contents

Component Quantity
Arduino Uno R3 1
MQ135 Gas Sensor 1
NEO-6M GPS 1
L298N Motor Driver 1
TT Gear Motor 2
2WD Chassis 1
18650 Cell 2
18650 2-Cell Holder 1
USB Cable 1
M-F Wires 20

Who This Kit Is For

Built for students aged 14+ (with adult supervision) who want to see science in motion. Perfect for CBSE science projects, ATL Tinkering Labs, or school pollution awareness campaigns. If you’re a beginner eager to combine robotics with real-world environmental monitoring, this kit puts you behind the wheel.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Every kit includes a QR code that opens an AI companion trained on this project. You can also reach our team on WhatsApp for quick guidance.

Does the MQ135 sensor need calibration?

The AI companion walks you through a pre-heating step and baseline calibration using fresh air values. No extra equipment is needed.

Can I see the pollution map live on my laptop?

The Arduino sends serial data that you can plot in the serial plotter or export to a mapping tool. The AI guide shows you exactly how.

What kind of pollution can this sense?

The MQ135 responds to ammonia, benzene, smoke, CO₂ and other gases, so it can show relative changes near roads, kitchens and labs.

Cabin Air — Arduino buggy carries MQ135 and GPS module — maps air quality readings for campus pollution survey.
