NE555 Delay Monostable Switch Module Time Delay Switch Delay On Vehicle Electrical Delay 12V
NE555 Delay Monostable Switch Module – Time Delay Switch for 12V Vehicle Electrical Projects

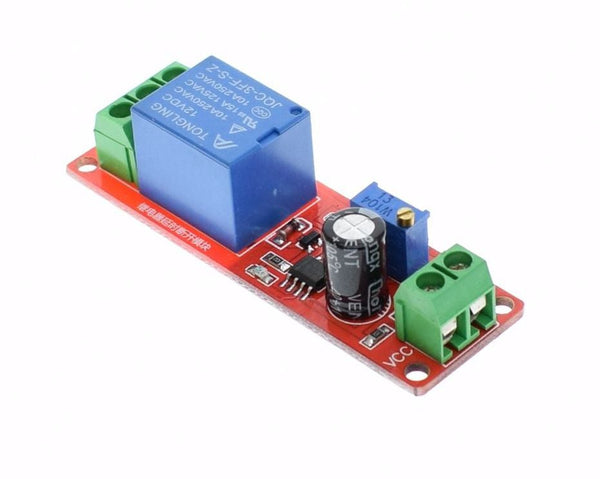

The NE555 Delay Monostable Switch Module is a compact time delay switch built around the classic NE555 timer IC. It provides a configurable delay-on function for 12V DC circuits, ideal for automotive, vehicle electrical, and general-purpose timing applications. This module is designed for makers, hobbyists, and students working on time-controlled switching projects.
Specifications
- Operating voltage: 12V DC
- Timer IC: NE555
- Mode: Monostable (delay-on)
- Delay range: Adjustable via onboard potentiometer (typical range 0–10 seconds, varies with RC components)
- Output: Relay (normally open / common / normally closed contacts)
- Relay rating: 10A @ 250V AC / 10A @ 30V DC
- Trigger: Active low or high (jumper selectable)
- Dimensions: Approximately 40mm x 20mm x 15mm
- Mounting: 2 mounting holes
Compatible with
- Arduino (Uno, Mega, Nano)
- ESP32, ESP8266
- Raspberry Pi (via GPIO and level shifting)
- STM32
- Any 12V DC system or microcontroller with 5V/3.3V logic
What you can build with it
- Automatic vehicle light delay-off circuit for car interiors or headlights
- Time-delayed motor start/stop for 12V pumps or fans
- Programmable timer for irrigation or industrial control systems
Built and Backed by Compoden
This module includes access to our AI build companion — delivered via QR code, email, or WhatsApp — that helps you wire and program it into a working project. With 10 years of experience supplying electronics to makers and institutions across India, we ensure every part is genuine and ready to use. Pay your way: UPI, cards, or Cash on Delivery, anywhere in India.
How do I adjust the delay time on this module?
The delay time is set using the onboard potentiometer. Turning it clockwise increases the delay; counterclockwise decreases it. The typical range is 0–10 seconds, depending on the RC components on the board. You can also change the capacitor or resistor to alter the range.
What payment options are available for the NE555 Delay Monostable Switch Module?
We accept UPI, all major credit/debit cards, and Cash on Delivery (COD) across India. Choose your preferred method at checkout.
How long does delivery take and where do you ship?
We ship the NE555 Delay Monostable Switch Module across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Delivery typically takes 3–7 business days depending on your location. COD and UPI available across India.
