Ohm's Law Interactive Demo Kit with Arduino Uno - Live Voltage, Current, Resistance Display

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Build a hands-on demonstration of Ohm's Law that brings textbook theory to life right on your breadboard. By varying a potentiometer, you'll see voltage and current readings update instantly on the LCD, while the Arduino Uno calculates resistance in real time. Whether for a school science exhibition, a CBSE practical lab, or an ATL tinkering session, this kit turns abstract formulas into a tangible, interactive experiment.

What You'll Build

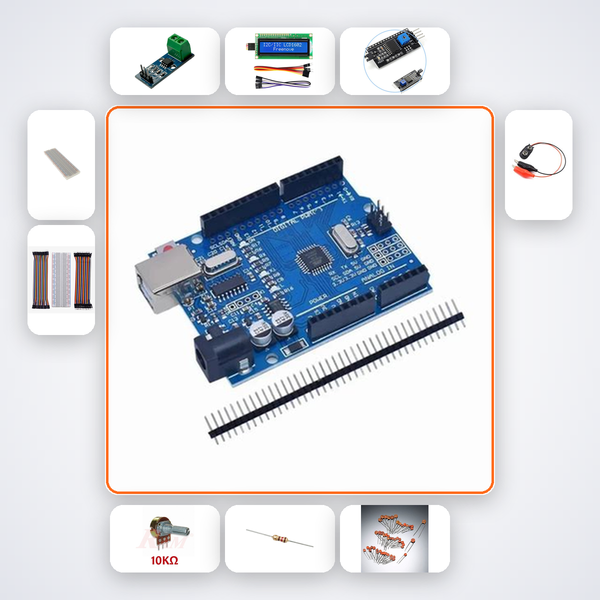

You'll assemble a self-contained circuit that uses a voltage sensor and an ACS712 current module to measure electrical parameters across a 10k? resistor. The Arduino reads these values, computes resistance using Ohm's Law, and displays live V, I, and R on a 16x2 LCD with I2C backpack. The entire project fits on a standard 400-point breadboard-no soldering, no extra tools. In under three hours, you'll have a polished demo that can be reused for multiple experiments.

What You'll Learn

• Wire a sensor circuit on a breadboard using jumper wires and understand the physical layout of components.
• Read analog sensor data from a voltage divider and an ACS712 current sensor, then convert raw ADC values into volts and amperes.
• Implement I2C communication to drive a 16x2 LCD display, showing multiple variables simultaneously.
• Verify Ohm's Law experimentally by observing that R stays constant while V and I change proportionally.

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is ideal for students in CBSE Class 9-12 who are studying electricity and circuits, B.Tech ECE/EEE freshmen needing a quick lab demo for internal assessments, and ATL Tinkering Lab participants preparing for district-level science fairs. It also serves STEM educators at IIT, NIT, VIT, or BITS Pilani who want an instant, reliable teaching aid for fundamental electronics workshops.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
