Parkinson's Tremor Quantifier Kit
Map Parkinson's Tremors into Clinical Data - Wearable Quantifier Kit with Arduino Nano + MPU6050
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
You're not just soldering a sensor - you're creating a clinical-grade wearable that quantifies Parkinsonian tremor in real time. With the MPU6050 sampling acceleration at 200 Hz, an FFT algorithm classifies rest, postural, and kinetic tremors, then stamps each severity score to an SD card with an RTC. By the end, you have a wrist-worn device ready for patient studies, hackathon demos, or your final-year biomedical project.
What You'll Build
A wearable bracelet that captures three-axis acceleration data, runs an embedded FFT to identify dominant tremor frequency bands (3-6 Hz rest tremor, 4-12 Hz postural/kinetic), and displays a real-time severity score on the OLED. Every reading is logged to a microSD as a CSV file with date, time, and tremor type, making post-session analysis straightforward.
What You'll Learn
- Configure MPU6050 for high-speed (200 Hz) raw accelerometer sampling without FIFO overflow
- Implement a 256-point FFT on an Arduino Nano and extract peak frequency bins for tremor classification
- Sync DS3231 RTC timestamps to each log entry for longitudinal patient monitoring
- Power a wearable system with a LiPo battery, charging circuit, and low-dropout regulation for safe extended use

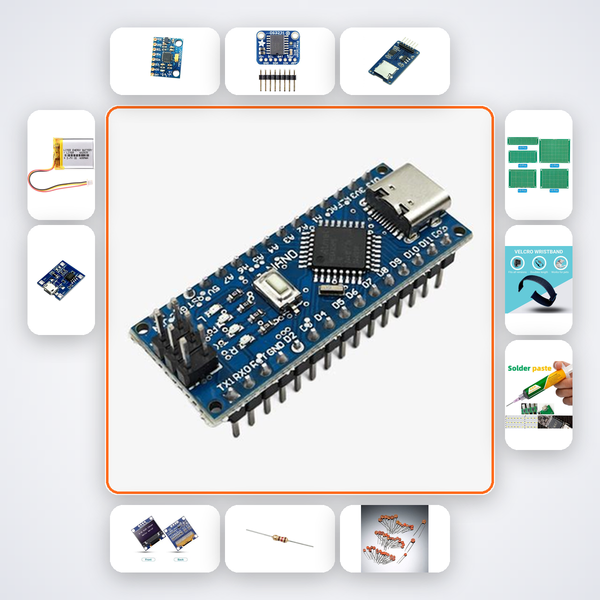

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | x1 |
| MPU6050 | x1 |
| DS3231 RTC | x1 |
| MicroSD Module | x1 |
| 0.96in OLED | x1 |
| 4.7k? Resistors | x5 |
| 100nF Caps | x10 |
| 3.7V LiPo 500mAh | x1 |
| TP4056 Module | x1 |
| PCB Prototype Board | x2 |
| Velcro Wristband | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Designed for final-year B.Tech students in ECE, EEE, or Biomedical Engineering who need a capstone project with real signal processing. It's also ready for Smart India Hackathon health-tech tracks, IIT/NIT/VIT/BITS engineering labs, and research interns working on movement disorder quantification. If you've already built basic Arduino projects and are comfortable with C, this kit pushes you into wearable DSP with a clear clinical application.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the AI companion via QR code or drop a WhatsApp message with a photo of your setup. Our assistant is trained on this kit's exact code, wiring, and common pitfalls.
Do I need prior DSP experience to complete this kit?
The project includes a pre-optimized FFT library and line-by-line code walkthrough. You only need basic C and Arduino familiarity; the signal processing concepts are explained as you build.
Can this device detect essential tremor or drug-induced tremors?
Yes. The FFT-based classifier is frequency-agnostic - you can adjust the frequency bands in the firmware to match essential tremor (4-12 Hz) or cerebellar tremor patterns.
How do I analyse the logged tremor data after a session?
The microSD stores CSV files with timestamp, tremor type, and severity score. Simply remove the card and open the file in Excel or MATLAB/Python for trend analysis.
MPU6050 at 200Hz samples tremor acceleration. FFT classifies tremor type and logs severity score with RTC timestamps.
What's in this kit
Choose your assembly option:
- Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
