Track Tremor Severity Over Months with the Arduino Nano + MPU6050 Wearable Logger

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

For patients managing essential tremor or Parkinson's disease, subjective diary entries don't capture the full picture. This kit helps you build a wrist-worn device that turns raw MPU6050 accelerometer and gyroscope readings into week-over-week tremor severity logs. By storing timestamped data on a microSD card, you can plot frequency and amplitude changes over months, giving neurologists a clear, objective measure of therapy effectiveness.

What You'll Build

A portable, rechargeable logger strapped to the wrist via a Velcro band. The MPU6050 captures fine motor oscillations at a configurable sampling rate, while the DS3231 RTC stamps every entry with the exact date and time. Data flows to a microSD card for later analysis, and a 0.96-inch OLED displays real-time tremor intensity and battery status. The final device runs on a 500mAh LiPo cell with a TP4056 charging module, all soldered onto a compact prototype board.

What You'll Learn

• Logging precise 6-axis motion data from the MPU6050 and filtering out gravity for clean tremor signals
• Writing structured CSV files to a microSD card with real-time clock timestamps using the DS3231
• Displaying live tremor metrics and battery charge on an I2C OLED
• Designing a wearable power circuit with a TP4056 charger and 3.7V LiPo battery, including proper decoupling with 100nF capacitors

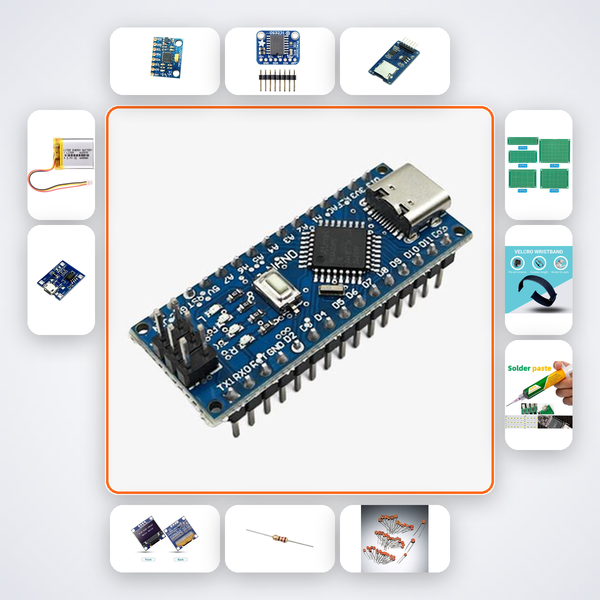

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

B.Tech ECE/EEE and biomedical engineering students building a final-year project centered on wearable health. Smart India Hackathon teams targeting the health-tech track and needing a rapid data-logging prototype. Research interns at IITs, NITs, VIT, or BITS Pilani who want to collect longitudinal tremor data for pilot studies. This kit gives you the hardware to move from concept to objective trend analysis without designing a PCB from scratch.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
