Build Your First Electronics Design: A Discrete Transistor H-Bridge with Arduino Uno

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

From blinking an LED to commanding a motor, the H-bridge circuit is the turning point where theory meets real-world actuation. In this beginner-friendly kit you reconstruct that classic circuit from BC547 and BC557 transistor pairs, then drive a DC motor forward and backward with two simple tactile buttons. It's your first true electronics design, laying the foundation for robotics, automation, and every project that needs to reverse motion.

What You'll Build

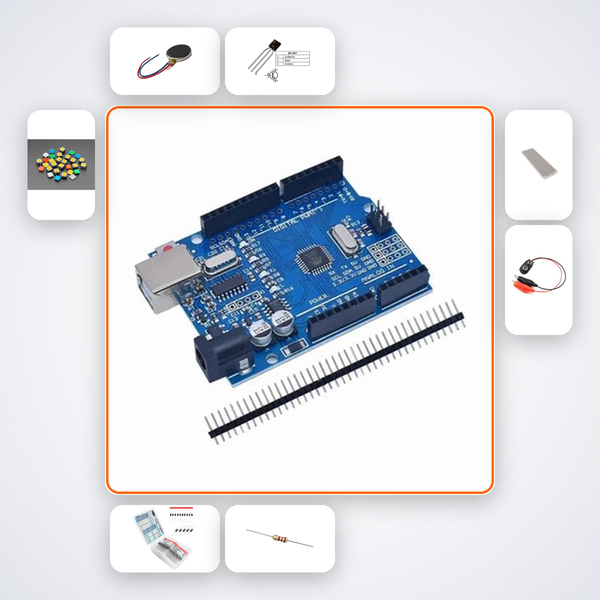

You'll finish with a fully functional motor-direction controller on a 400-point breadboard. The Arduino Uno handles logic, while your hand-wired transistor network switches current through the 5V motor. Pushing one button spins the motor clockwise; the other reverses it instantly. No soldering required - every connection is visible and changeable, letting you truly see how the H-bridge topology works.

What You'll Learn

• How NPN (BC547) and PNP (BC557) transistors act as digital switches to steer current
• The H-bridge configuration and why it's essential for bidirectional motor control
• Protecting transistors from inductive kickback using 1N4007 flyback diodes
• Mapping Arduino GPIO pins safely to control a motor without dedicated driver ICs

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Designed for CBSE Class 11-12 students tackling electronics-based physics projects, first-year B.Tech ECE/EEE learners who need a tangible lab exercise, and participants of ATL Tinkering Labs or the Smart India Hackathon exploring motor control. If you've used Arduino before and want to replace a pre-assembled motor driver with a circuit you built yourself, this is the ideal next step.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
