VFD Simulator with ESP32 Kit
Build a VFD Simulator That Mimics Industrial Motor Control: ESP32 Three-Phase SPWM Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Step into industrial motor control with this ESP32-powered Variable Frequency Drive simulator. Build a three-phase inverter that mimics real-world VFDs: adjustable frequency and voltage ratio, SPWM control, and current monitoring. Learn power electronics without the cost of commercial hardware.
What You'll Build
You'll solder and connect the ESP32, MOSFETs, gate drivers, current sensor, and OLED onto prototype boards, housed in a DIN rail enclosure. The ESP32 outputs three-phase SPWM to the H-bridge, with adjustable frequency and V/F ratio visible on the OLED. A 24V PSU powers it safely.
What You'll Learn
- Generate three-phase SPWM signals on ESP32 for precise motor-like control
- Design and interface IR2110 high- and low-side gate driver circuits for MOSFET H-bridge
- Implement constant V/F control to maintain torque at varying speeds
- Monitor system health with INA219 current sensing and OLED feedback

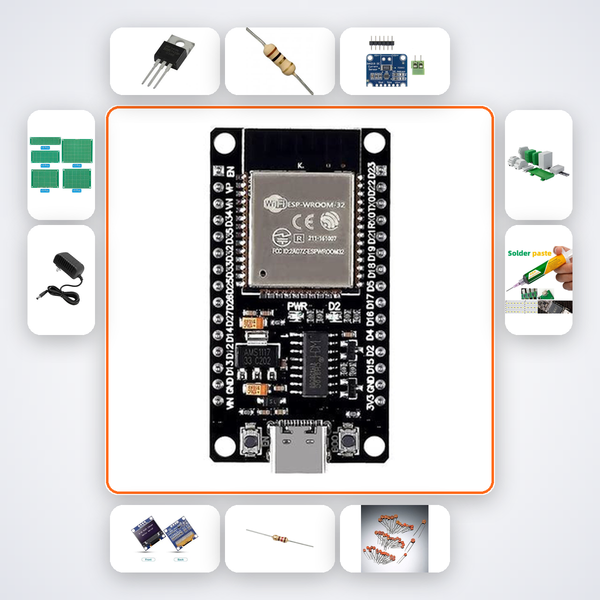

Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| IRF540N MOSFET | 6 |
| IR2110 Gate Driver | 3 |
| INA219 | 1 |
| 0.96in OLED | 1 |
| 100? Gate Resistors | 12 |
| 10k? Resistors | 5 |
| 100nF Caps | 15 |
| PCB Prototype Board | 3 |
| 24V 5A PSU | 1 |
| DIN Rail Enclosure | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Built for B.Tech EEE and ECE students tackling power electronics projects, Smart India Hackathon participants, and hobbyists at IITs, NITs, VIT, or BITS Pilani. Ideal for final-year project submissions and hands-on VFD learning.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Use the included QR code to access the AI companion for real-time help with SPWM, gate driver issues, or assembly. WhatsApp support also available.
Is this kit suitable for someone new to power electronics?
This is an advanced project; prior microcontroller and soldering experience is needed. The 24V design is safer than AC, and our AI companion explains key concepts as you build.
Can I drive an actual motor with this VFD simulator?
The simulator outputs low-power SPWM signals for LEDs or resistive loads to demonstrate VFD behavior. It is not designed for continuous motor operation.
Does the kit come with pre-programmed code?
Yes, the ESP32 includes working SPWM firmware. You'll adjust frequency and V/F ratio variables-the AI companion explains every line
ESP32 SPWM drives three-phase H-bridge. Adjustable frequency and voltage ratio simulates VFD operation.
What's in this kit
- ESP32 Dev Board
- IRF540N MOSFET x6
- IR2110 Gate Driver x3
- INA219
- 0.96in OLED
- 100? Gate Resistors x12
- 10k? Resistors x5
- 100nF Caps x15
- PCB Prototype Board x3
- 24V 5A PSU
- DIN Rail Enclosure
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
