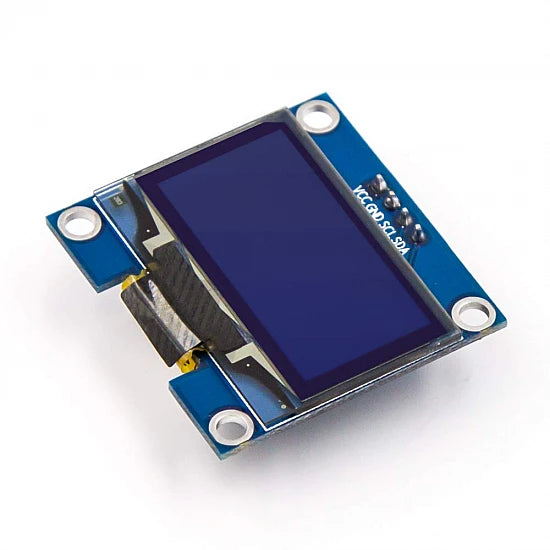

1.3 inch OLED Display Module 128x64 I2C Blue (SH1106)
1.3 inch OLED Display Module 128x64 I2C Blue (SH1106)
A 1.3 inch 128x64 monochrome blue OLED driven over I2C, with a larger panel than the common 0.96 inch modules. It uses the SH1106 controller and a 4-pin VCC/GND/SCL/SDA header.
Specifications
- 128x64 px
- 1.3 inch
- I2C
- SH1106
- monochrome blue
- 3.3-5V
- 4-pin (VCC GND SCL SDA)
Compatible with
- Arduino
- ESP32
- ESP8266
- Raspberry Pi (I2C)
Build it with Compoden's AI
Tell Compoden's AI build assistant what you want to display and it picks a compatible screen, checks it against your board's interface and voltage, and hands you the wiring and the driver code matched to the exact module - all from real in-stock parts.
Built and Backed by Compoden
We have spent 10 years supplying displays, boards, and parts to makers, schools, and engineering teams across India. Every Compoden order includes our AI build companion to help you wire the screen and write the driver code.
Which controller does the 1.3 inch use?
The SH1106, so select the SH1106 driver in your library rather than SSD1306.
How many pins?
Four: VCC, GND, SCL and SDA over I2C.
Is it larger than a 0.96 inch module?
Yes, the 1.3 inch panel shows the same 128x64 pixels on a physically bigger screen.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
