10-Segment LED Bar Graph Display (red)

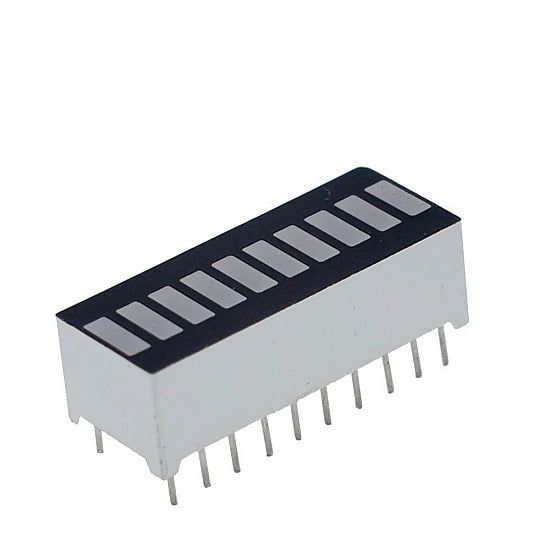

A linear bar of ten red LEDs in a single plastic package with 20 pins on 0.1 inch spacing. Each LED is individually addressable, making it useful for level meters and status indicators.
Specifications
- 10 segments (10 LEDs)
- red
- 20 pins (10 per side)
- 0.1 inch pin spacing
- dimensions 25.5 x 10 x 14 mm (L x W x H)
Compatible with
- breadboard
- Arduino
- any microcontroller (each LED needs a current-limiting resistor)
Build it with Compoden's AI
Tell Compoden's AI build assistant what you want to display and it picks a compatible screen, checks it against your board's interface and voltage, and hands you the wiring and the driver code matched to the exact module - all from real in-stock parts.
Built and Backed by Compoden
We have spent 10 years supplying displays, boards, and parts to makers, schools, and engineering teams across India. Every Compoden order includes our AI build companion to help you wire the screen and write the driver code.
How many LEDs are in it?
Ten individual red LEDs in one package.
How are the pins arranged?
20 pins, 10 on each side, at 0.1 inch spacing.
Does it need resistors?
Yes, each LED needs its own current-limiting resistor.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
