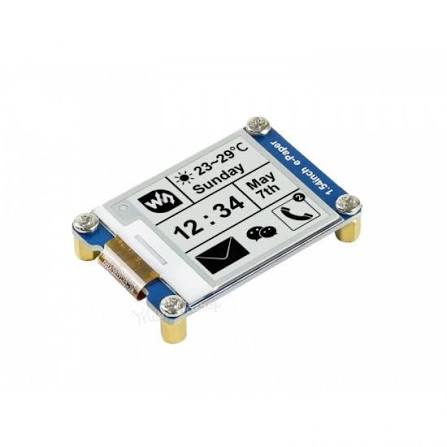

Waveshare 1.54inch E-Ink Display Module 200x200 Black/White SPI
The Waveshare 1.54inch E-Ink Display Module is a 200x200 pixel, black-and-white e-Paper screen with an SPI interface. It is designed for makers, engineers, and students building battery-powered or always-on display projects using Arduino, ESP32, Raspberry Pi, STM32, or Nucleo boards.
Specifications
- Display size: 1.54 inches diagonal
- Resolution: 200 x 200 pixels
- Colour: Black and white
- Interface: SPI (4-wire)
- Operating voltage: 3.3V (logic level)
- Power: Bistable — holds image with zero power; consumes ~26mW during refresh
- Refresh time: ~2 seconds (full refresh)
- Partial refresh: Supported
- Viewing angle: >170°
- Dimensions: 48.0 x 33.5 x 1.0 mm (module)
Compatible with
- Arduino (Uno, Mega, Nano, etc.)
- ESP32 and ESP8266
- Raspberry Pi (all models)
- STM32 / Nucleo
- Any 3.3V microcontroller with SPI
What you can build with it
- Battery-powered name badge or ID tag that lasts months
- Electronic shelf label for retail or warehouse inventory
- Low-power weather station display or smart home dashboard
Built and Backed by Compoden
Every Waveshare display from Compoden comes with access to our AI build companion — delivered via QR code, email, or WhatsApp — that helps you wire and program this module into a working project. With 10 years of experience supplying makers and institutions across India, we ensure you get genuine parts and reliable support. Pay your way: UPI or cards anywhere in India, plus COD if checkout offers it for your order.
How do I connect this display to an Arduino?
Connect the SPI pins (CS, DC, MOSI, SCK) to your Arduino's hardware SPI pins, plus VCC (3.3V) and GND. Use the GxEPD2 or Waveshare e-Paper Arduino library. A wiring diagram is included with the module.
What payment options are available for the Waveshare 1.54inch E-Ink Display Module?
We accept UPI, all major credit/debit cards, and Cash on Delivery (COD) if checkout offers it for your order.
How long does delivery take?
We ship the Waveshare 1.54inch E-Ink Display Module across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Dispatch time: 3-5 days. Delivery takes 2-7 days after dispatch, depending on your location.
Does this display need a backlight?
No. E-Ink is reflective — it uses ambient light like paper. There is no backlight, which makes it ideal for outdoor or battery-powered use.
Buy the Waveshare 1.54inch E-Ink Display Module online in India with UPI and cards, plus COD if checkout offers it for your order. Order now from Compoden.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
