nRF24L01 2.4GHz Wireless Transceiver Module
nRF24L01 2.4GHz Wireless Transceiver Module
The nRF24L01 is a 2.4GHz RF wireless transceiver module built on the Nordic nRF24L01+ chip. It uses an SPI interface for low-power, two-way wireless communication, making it a standard choice for linking Arduino, ESP32, and Raspberry Pi projects.
Specifications
- Operating frequency: 2.4GHz ISM band
- Interface: SPI (Serial Peripheral Interface)
- Logic level: 3.3V (requires level shifting with 5V microcontrollers)
- Number of channels: 125 (selectable)
- Data rates: 250kbps, 1Mbps, 2Mbps
- Range: Up to 100m line-of-sight (with onboard PCB antenna)
- Supply voltage: 1.9V to 3.6V
- Dimensions: 29mm x 15mm x 4mm (approx.)
Compatible with
- Arduino (Uno, Nano, Mega, Leonardo)
- ESP32 and ESP8266
- Raspberry Pi (all models)
- STM32
- AVR and PIC microcontrollers
What you can build with it
- Wireless remote control for robots and RC vehicles
- Sensor telemetry system (temperature, humidity, pressure data sent wirelessly)
- Simple mesh network for multi-node communication
Built and Backed by Compoden
Every nRF24L01 module from Compoden comes with access to our AI build companion, delivered via QR code, email, or WhatsApp, that helps you wire and program it into a working project. With 10 years of experience supplying makers and institutions across India, we ensure you get genuine parts and reliable support. Pay your way: UPI, cards, or Cash on Delivery, anywhere in India.
What is the range of the nRF24L01 module?
With the onboard PCB antenna, the nRF24L01 achieves up to 100 meters line-of-sight. Range can be extended with an external antenna on the nRF24L01+PA+LNA variant.
How do I connect the nRF24L01 to an Arduino?

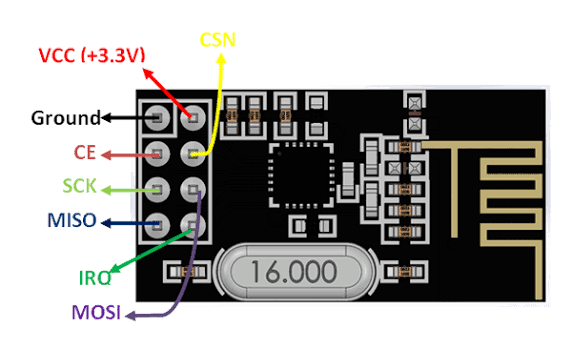

Use the SPI pins: CE (chip enable) to digital pin 9, CSN (chip select) to digital pin 10, MOSI to pin 11, MISO to pin 12, SCK to pin 13. Power the module with 3.3V and connect ground. Use the RF24 library for programming.
What payment options are available for the nRF24L01 2.4GHz Wireless Transceiver Module?
You can pay via UPI, credit/debit cards, or Cash on Delivery (COD). All payment methods are available across India.
How long does delivery take?
We ship the nRF24L01 module across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Delivery typically takes 2–5 business days depending on your location.
Buy nRF24L01 Online in India with COD and UPI available across India.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
