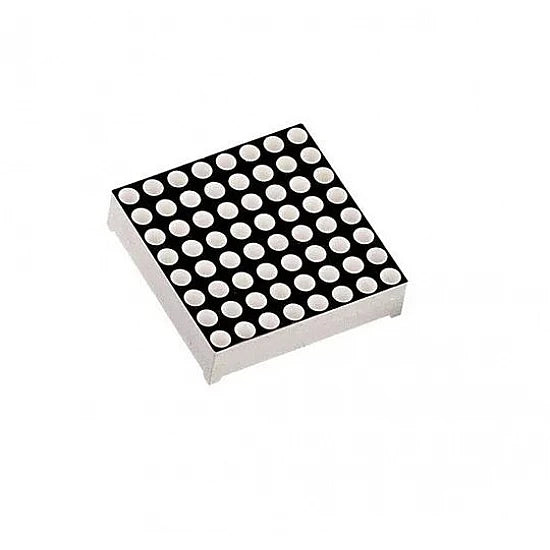

8x8 64 LED Dot Matrix Display (common anode, red, 16-pin)

A bare 8x8 red LED dot matrix in common-anode configuration with 16 pins, no driver IC onboard. It fits a standard breadboard and requires external multiplexing or a driver to address all 64 LEDs.

Specifications

• 8x8 matrix (64 LEDs)
• common anode
• red
• 16 pins
• LED size 5mm
• forward current 20mA
• forward voltage 2.1-2.5V
• wavelength 625-630nm
• dimensions 60 x 60 x 7 mm
• operating temp -40 to 85C

Compatible with

• breadboard
• Arduino with external driver
• MAX7219 (note: MAX7219 expects common-cathode matrices)
• any microcontroller via driver circuit
