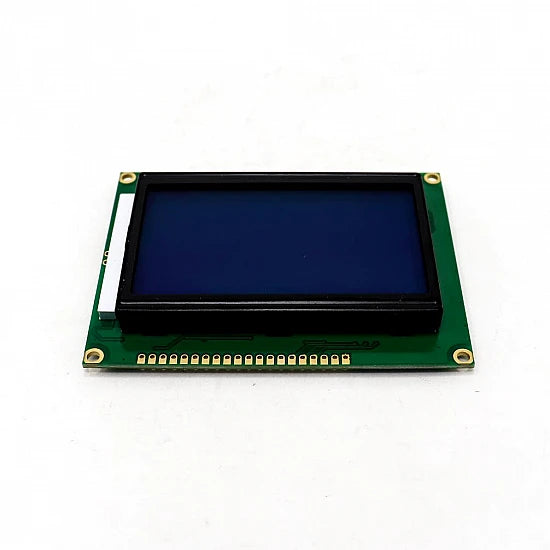

12864B V2.0 128x64 Graphic LCD Display Module (ST7920, Blue Backlight)
A 128x64 pixel graphic LCD built on the ST7920 controller with a blue backlight and white display. It can run in 8-bit parallel or 3-wire SPI mode and shows both graphics and text.
Specifications
- 128x64 pixel graphic
- ST7920 controller
- 5V input
- 8-bit parallel or SPI serial
- White characters on blue backlight
- SPI mode uses 3 data pins
- Dimensions 94 x 70 x 10 mm
- Viewing area 71 x 39 mm
Compatible with
- Arduino
- Most microcontrollers
- 8-bit parallel control
- 3-wire SPI mode
Build it with Compoden's AI
Tell Compoden's AI build assistant what you want to display and it picks a compatible screen, checks it against your board's interface and voltage, and hands you the wiring and the driver code matched to the exact module - all from real in-stock parts.
Built and Backed by Compoden
We have spent 10 years supplying displays, boards, and parts to makers, schools, and engineering teams across India. Every Compoden order includes our AI build companion to help you wire the screen and write the driver code.
What controller does it use?
The ST7920, which supports both parallel and serial modes.
Can it run over SPI?
Yes, SPI mode uses only 3 data pins.
What supply voltage?
5V.
